Feature of a Product
・Self lubricating
The PTFE lining is bonded to the inner diameter of the race. The PTFE Liner acts as a lubricant and therefore no other lubrication is necessary. Thus they are eminently suitable to apply where re-lubrication is impractical or impossible. More over, as they don't require any lubrication, they are effective to lower the maintenance cost. They perform well under slow fluctuation velocity and oscillation load. Therefore PTFE type can induce the difficulties of metal/metal type such as high friction, seizure, fatigue destruction and fretting on the fluctuating surface.
Dimension
Dimensions in mm
| Part No. | øB H7 | φD 0-0.013 | W 0-0.13 | H ±0.13 | α DEG | øO(REF) | SøDB(REF) | No Load Rotational Breakaway Torque - Standerd Type lower limit [N･m] |
No Load Rotational Breakaway Torque - Standerd Type upper limit [N･m] |
No Load Rotational Breakaway Torque - Standerd Type lower limit [kgf・cm] |
No Load Rotational Breakaway Torque - Standerd Type upper limit [kgf・cm] |
Static Limit load(Radial) [kN] |
Static Limit load(Axial) [kN] |
Dynamic Load [kN] |
Approx. Weight [g] |
|---|

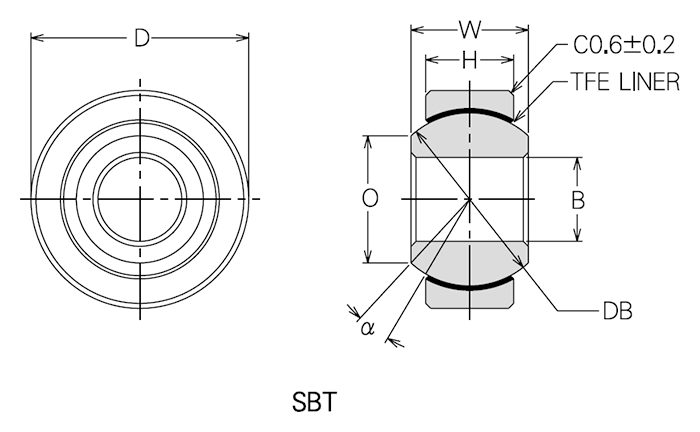

Overall View
Material
| (P/N) | RACE | BALL | LINER |
|---|---|---|---|
| SBT | 410 Stainless Steel | 440C Stainless Steel | PTFE / Fabric |

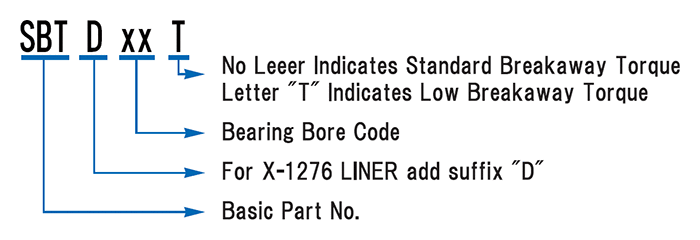

Part Number
Notes
1. PTFE liner permanently bonded to race I.D.
2. MBYT & MBYT-V weights are similar.
3. Made to order only.
4. No Load Rotational Breakaway Torque.
Low Torque All Size: 0.02N・m MAX (Radial Clearance 0.05mm MAX)
*Please consult MinebeaMitsumi for availability of bearings in this series.
