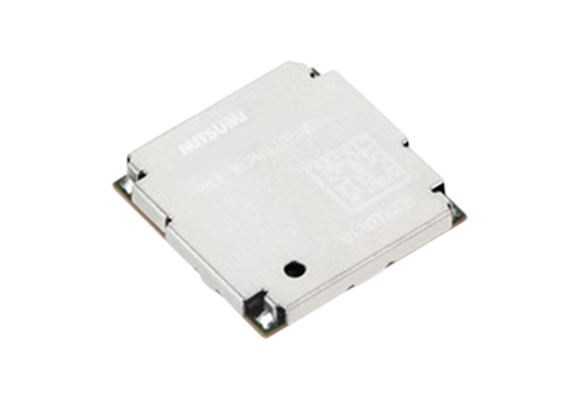

A wireless LAN compatible communication module with small size, due to high-density mounting technology.
Features
- 1. Small size package.
- 2. This product has a shield.
- 3. 802.11ac compatible.
- 4. Operating Temperature : -40 to +85℃
Specifications
| Wireless LAN Operating Frequency | 2.412GHz - 2.472GHz, 5.18GHz - 5.825GHz |
|---|---|
| Wireless LAN Channels | 13channels (2.4GHz Band) 19 - 23channels (5GHz Band) |
| Wireless LAN Modulation | DSSS, OFDM |
| Wireless LAN Data rate | DSSS: 1Mbps/2Mbps/5.5Mbps/11Mbps OFDM: 6Mbps/9Mbps/12Mbps/18Mbps/24Mbps/36Mbps/48Mbps/54Mbps MCS0/MCS1/MCS2/MCS3/MCS4/MCS5/MCS6/MCS7/MCS8/MCS9 |
| Wireless LAN Host Interface | Wireless LAN |
| Wireless Communication(FHSS) Operating Frequency | 2.402GHz - 2.480GHz |
| Wireless Communication(FHSS) Output Level | Class1 or Class2 |
| Wireless Communication(FHSS) Hopping | 1600hops/sec |
| BWireless Communication(FHSS) Modulation | GFSK, π/4-DQPSK, 8DPSK |
| Wireless Communication(FHSS) Data Rate | GFSK : 1Mbps π/4-DQPSK : 2Mbps 8DPSK : 3Mbps |
| Wireless Communication(FHSS) Host Interface | UART (9.6kbps to 4Mbps) /PCM or I2S |

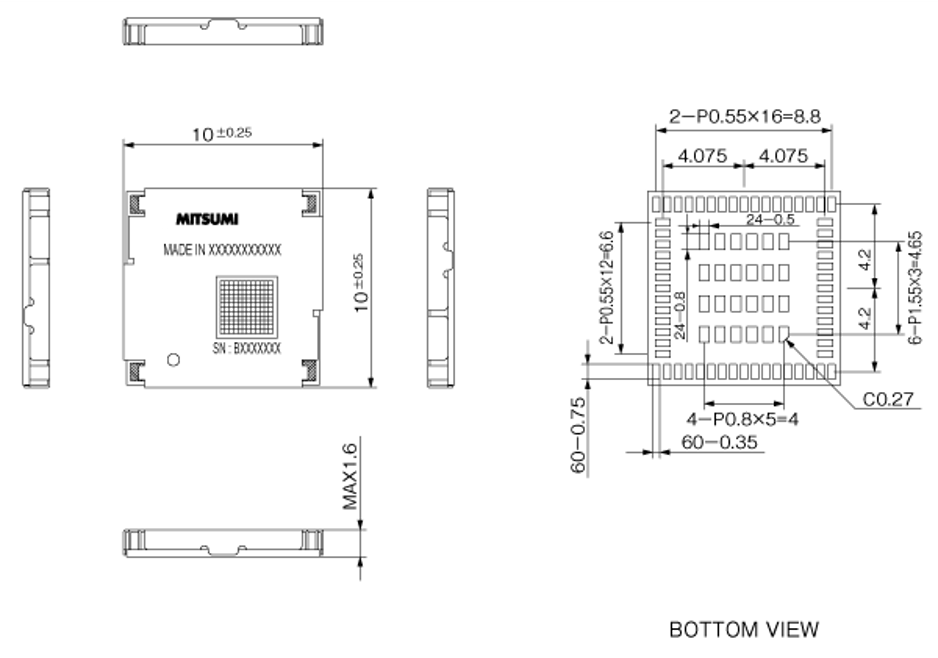

Overall View
Unit:mm
