MM3856 Series

MM3856 series are Li-ion battery protection IC and detect charge current / discharge current with high precision by current sensing
resistor (Rsns). MM3856 have two step discharge overcurrent detection. And system is protected appropriately in the next 2 state, Normal discharge mode and large current discharge mode.

For one-cell

(1) Range and accuracy of detection/release voltage
　● Overcharge detection voltage 4.1V to 5.0V, 5mV steps Accuracy±20mV
　● Overdischarge detection voltage 2.1V to 3.0V, 50mV steps Accuracy±35mV

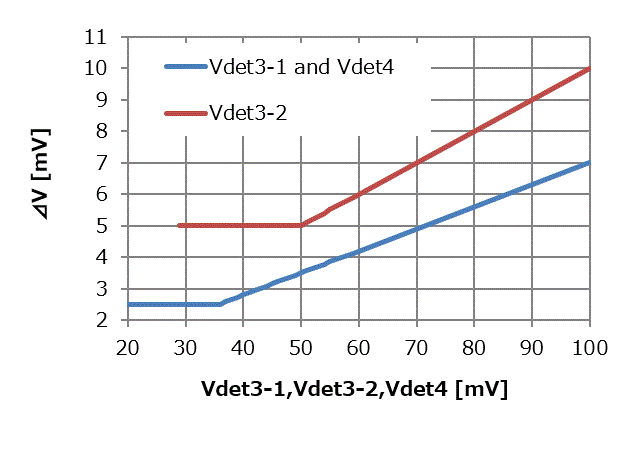

　● Discharging overcurrent detection voltage1 15mV to +100mV, 1mV steps ※1
　● Discharging overcurrent detection voltage2 30mV to +100mV, 1mV steps ※1
　● Charging overcurrent detection voltage -100mV to -15mV, 1mV steps ※1
　● Short detection voltage1 50mV to 200mV, 50mV steps Accuracy±20mV (Discharging overcurrent detection voltage 2 disable.)
Accuracy±25mV (Discharging overcurrent detection voltage 2 enable.)
　● 0V battery charge inhibition battery voltage 1.3 to 1.8V, 0.1V steps Accuracy±0.1V
0.9V fixed Accuracy±0.3V

(2) 0V battery charge function Selectable "Permission" or "inhibition"

(3) Current consumption
　● Normal mode 2.5uA typ.4.0uA max.
　● Standby mode 0.1uA max. (Overdischarge latch function enable.)
0.6uA max. (Overdischarge latch function disable.)

• SSON-6J
• SSON-6M
• SON-6C
• SSON-6U
• SSON-6V
