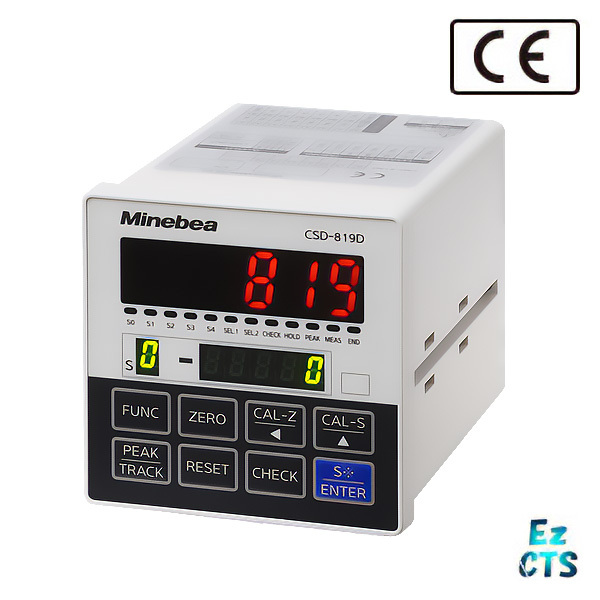

Features
■High speed sampling at 2 000 times/s
■Various peak mode setting.
■Suitable for the press fit measuring
■Equipped with 4-point calibration data・ comparator brand switching function
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 10 VDC±0.5VDC within 60 mA (Changeable to 5 VDC or 2.5 VDC) |
| Input range | ±3.1 mV/V |
| Input sensitivity | 0.4 μV/digit (at 10 VDC bridge power supply) 0.2 μV/digit (at bridge power supply of 5 VDC and 2.5 VDC) |
| Monitor output | Sensor input per 1 mV/V 2 V ±0.1 V ( bridge power supply at 10 VDC), load resistance 2 kΩ min. |
| Output range | DC±10 V Load resistance5 kΩor more (F.S. setting is available in the function.) |
| Output times | 100 times/s, 500 times/s,1 000 times/s, 2 000 times/s (Synchronous with A/Dsampling rate.) |
| Output resolution | Same as the displayresolution. |
| Zero adjustment range | ±2.0 mV/V |
| Non-linearity | Display 0.025 %F.S., Output 0.025 %F.S. |
| Temperature coefficient | Zero point ±0.5 μV/℃(when calibrated with input sensitivity or higher, or within ±1.0 mV/V of zero for a gauge voltage of 10 VDC) Sensitivity ±0.01 %F.S./℃(when calibrated at or above the input sensitivity) |
| Input filter | 10 Hz, 100 Hz, 1 kHz |
| A/D sampling speed | 2 000 times/s (Changeable to 100 times/s, 500times/s, 1 000 times/s) |
| Display range | -11 000 ~ 11 000 |
| Comparator Display | Display range ：-99 999 ~ 99 999 Nos. of display ： 1 point (Selectablefrom S0, S1, S2, S3 or S4) Display times ：20 times/s (Changeable to 4 times/s, 50 times/s or 100times/s) |
| Comparator function | Display range ：-99 999 ~ 99 999 Nos. of display ：1 point (Selectable from S0, S1, S2, S3 or S4) Display times ：20 times/s (Changeable to 4 times/s, 50 times/s and 100 times/s) Open collector output function ：'S1, S2, S3, S4 On when reached under/over the conparator set value. S0 On with each condition of the function setting. |
| Operating temp./humidity range | Temperature -10 ℃~ 50 ℃, Humidity 85 %RH or less (Non condensing) |
| Power supply voltage | 100 VAC ~ 240 VAC 50/60 Hz (Permissible variable range 85 VAC ~ 264 VAC) |
| Power consumption | Approx.16 VA at maximum (with options, at 230 VAC) Approx.14 VA at maximum (with options, at 100 VA) |
| Outline dimensions(WxHxD) | 96 mm x 96 mm x 129.5mm (excludes protruding parts) |
| Weight | Approx. 500 g (without options) |
| Protection code | IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed. |
Start guide
Download
Options
- Current output
- Voltage input
- External control (voltage input type)
- BCD output
- RS-232C interface
- RS-422/485 interface
