Features
・ Space saving when a multi channel is applied is achieved.

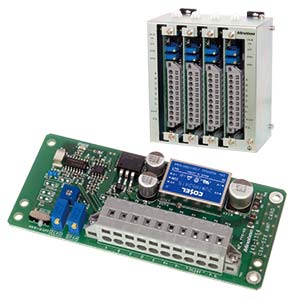

・ Available to mount the CSA-528 with a special case as an option.
・ The exchange work of CSA-528 for maintenance is easy by using an optional case.
・ CSA-528 is driven in the power supply of DC24 V, and easy to store in the cotrol board.
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | DC10 V±0.3V (+0.9 V, -0.2 V) within 120 mA |
| Input range | 0.5 mV/V ~ 1.5 mV/V |
| Sensitivity | Output of 10 V at the input of 0.5 mV/V |
| Sensitivity adjustable range | 2 000 times adjustable for 1/1 to 1/4 |
| Output | ±10 V |
| Output Load Resistance | 2 k-ohm or more |
| Zero adjustment range | ±0.25 mV/V (Tare compensation is adjusted by mounting the resistance.) |
| Non-linearity (Display and voltage output) |
0.02 %F.S. |
| Temperature efficient | Zero balance ±0.1 μV/℃ (Inputconversion) Sensitivity ±0.01 %F.S./℃ |
| CALIB | 0.5 mV/V±0.001 mV/V |
| Frequency response range | 1 kHz (-3dB±1 dB) |
| Operating temp. / humidity range | Temperature -10 ℃~ 50 ℃ Humidity 85 %RHor less(Non condensing) |
| Power supply | 24 VDC 100 mA |
| Outline dimensions (WxHxD) | 110 mm x 50 mm x 20 mm (Excludes protruding parts) (with mounting case No. CSA-528-80-2) 72 mm x 135 mm x ×70 mm (with mounting case No. CSA-528-80-4） 112 mm x 135 mm x 70 mm |
| Weight | Approx. 50 g (with mounting case No. CSA-528-80-2) Approx.500 g (with mounting case No. CSA-528-80-4） Approx.800 g |
Download
Options
- Mounting case
