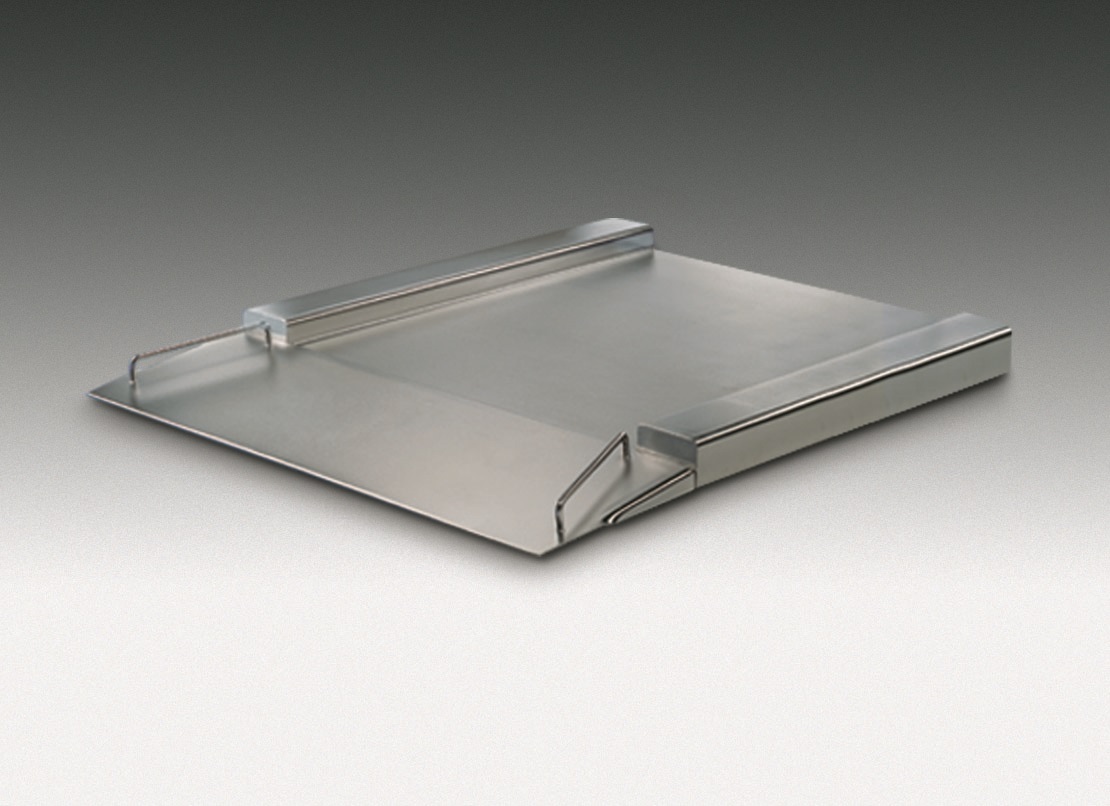

Flat-bed Scales IF Series

IF Series

Minebea Intec

Contact

Specification
Table of P/N

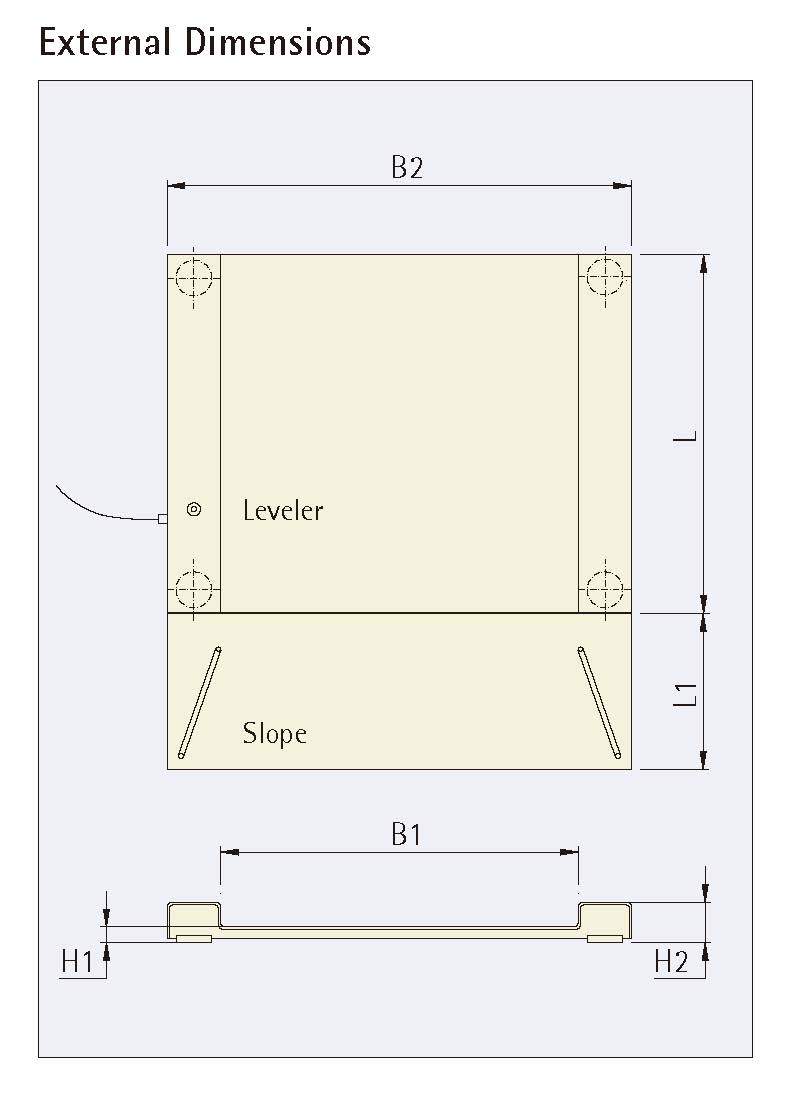

External view

Features

●Wide range of weighing capacities and platform sizes Non-explosion-proof:59 types,explosion-proof:48 types
●Various options are available based on the operating method
●Made entirely of stainless steel(AlSl304 SUS304 equvalent Bead blasted finish,seamless machining
●Accuracy:1/3000(Uses 1/6000 load cell type)
●Max.display resolution :1/30000(When combined with a CAIS type display.However,resolution is 1/15000 if T8 option is used)
●Completely water proof IP67 and IP68
●Separable weighing part and display part.Display can be selected based on the application.
●Display connection cable 6m
●Single-sided slope equipped as standard(Double slopes available as options)【Explosion-priif type】
●Intrinsically safe explosion-proof structure Ex ib ⅡC T4(Explotion-proof international standard ATEX accredited.Supported with IFXS types)
●Select among 3 types:Power supply for installation in explotion-proof areas,power supply for installation in safe areas,and battery type.

Specification

Specification name	Specification contents	Specification contents2	Specification contents3
Item	IFS4	IFXS4	IFS4
OIML Accuracy class	C3	C3	C3
Explosion-proof		ATEX：Ⅱ 2G 1D EEx ib ⅡC T4 T150℃
Recommended supply voltage	5VDC～12VDC	5VDC～12VDC	5VDC～12VDC
Load Cell Rated output	2mV/V(4-point support)	2mV/V(4-point support)	2mV/V(4-point support)
Operating temperature range	-10℃～40℃	-10℃～40℃	-10℃～40℃
Class of protection	IP67	IP69	IP68(IP69K available)
Material of element	Body:JIS SUS304 equivalent	Body:JIS SUS304 equivalent	Body:JIS SUS304 equivalent
Surface Finish	Glass beads blasted finish(standard)、Electro-polished finish(optional specification)	Glass beads blasted finish(standard)、Electro-polished finish(optional specification)	Glass beads blasted finish(standard)、Electro-polished finish(optional specification)
Cable length	6m	6m	6m
