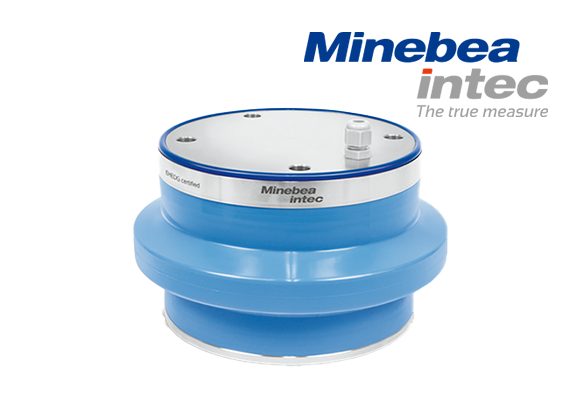

Hygienic Weighing Module

Contego PR6041 Series

Minebea Intec

Contact

Specification
Table of P/N

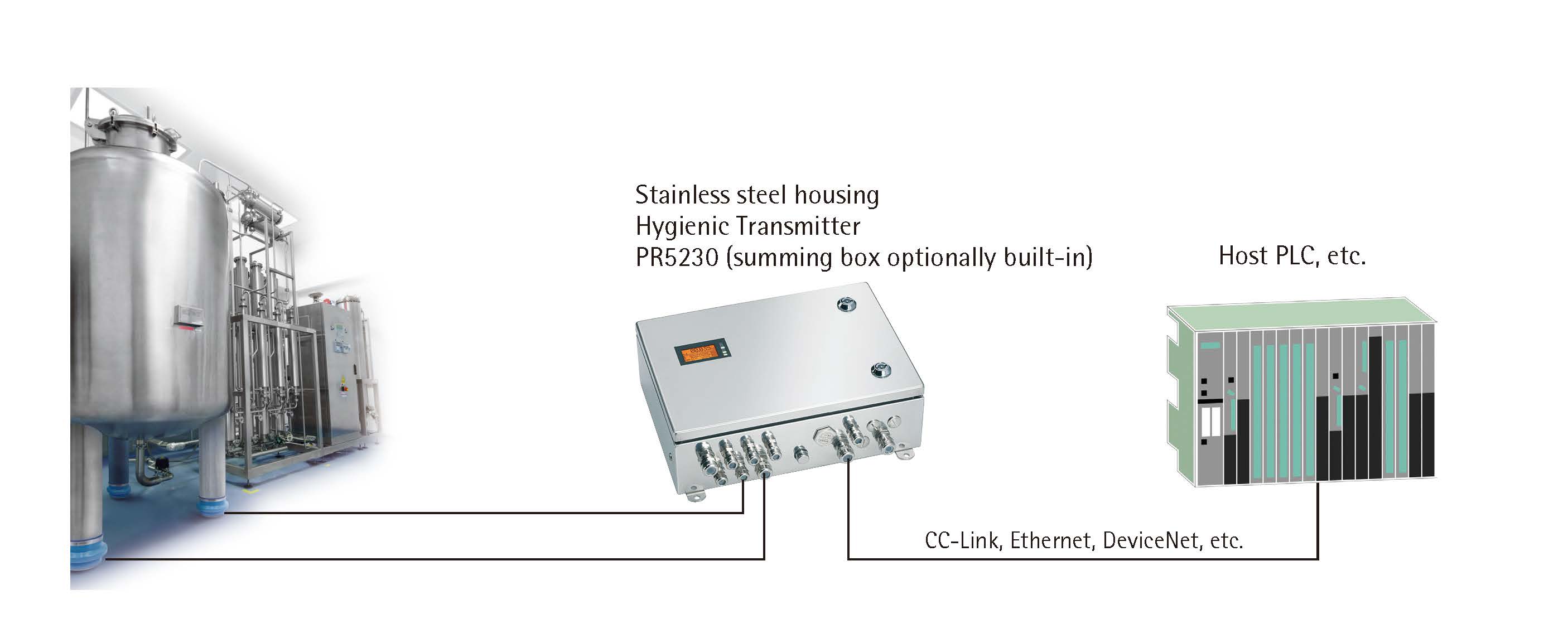

Installation example

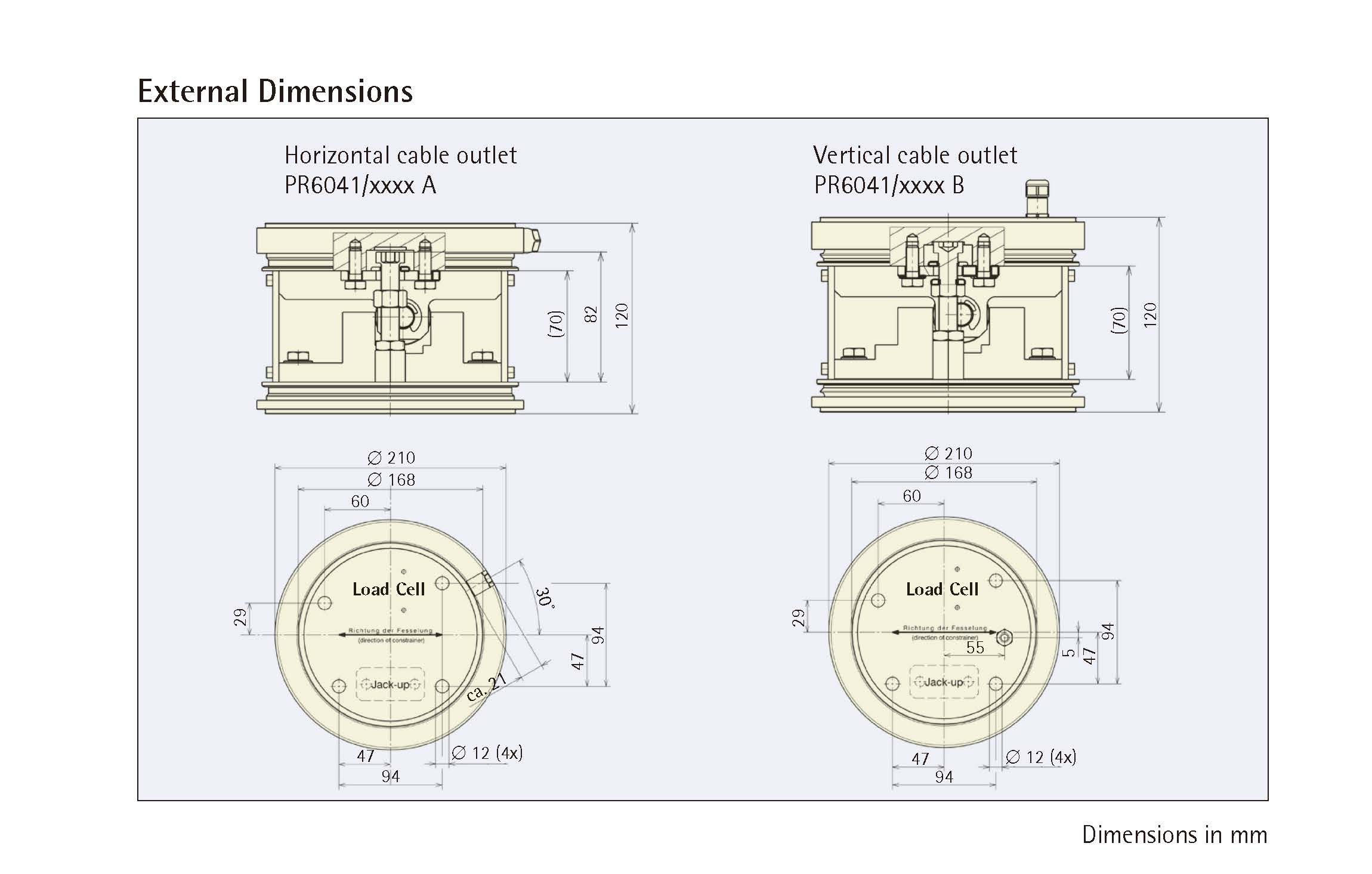

External view

Features

■Hygienic integrated mount(EHEDG compliant) with built-in high-accuracy load cell(PR6241 type)
■Hygienic design(EHEDG compliant)
■highly corrosion-resistant top/bottom plates(AlSl316L
■FDA complianr silicone rubber sides
■Completely waterproof IP68/IP69K
■Cable outlet available in 2 direcyions(Horizontal:A、vertical:B)
■Base plate optionally available

Specification

Specification name	Specification contents	Specification contents2	Specification contents3	Specification contents4	Specification contents5	Specification contents6
OIML Accuracy class	D1	D1E	C3	C3E	C6	C6E
Accuracy class	0.04%Emax	0.04%Emax	0.015%Emax	0.015%Emax	0.008%Emax	0.008%Emax
Safe load limit	150%Emax	150%Emax	150%Emax	150%Emax	150%Emax	150%Emax
Destructive load	300%Emax	300%Emax	300%Emax	300%Emax	300%Emax	300%Emax
Rated output	2.0mV/V	2.0mV/V	2.0mV/V	2.0mV/V	2.0mV/V	2.0mV/V
Rated output tolerance	<0.25%Cn	<0.25%Cn	<0.07%Cn	<0.07%Cn	<0.07%Cn	<0.07%Cn
Zero balance	<1.0%Cn	<1.0%Cn	<1.0%Cn	<1.0%Cn	<1.0%Cn	<1.0%Cn
Reproducibility	<0.01%Cn	<0.01%Cn	<0.005%Cn	<0.005%Cn	<0.005%Cn	<0.005%Cn
Creep	<0.03%Cn	<0.03%Cn	<0.015%Cn	<0.015%Cn	<0.008%Cn	<0.008%Cn
Non-linearity	<0.03%Cn	<0.03%Cn	<0.01%Cn	<0.01%Cn	<0.01%Cn	<0.01%Cn
Hysteresis	<0.04%Cn	<0.04%Cn	<0.015%Cn	<0.015%Cn	<0.008%Cn	<0.008%Cn
Temperature effect on Zero	<0.028%Cn/10K	<0.028%Cn/10K	<0.01%Cn/10K	<0.01%Cn/10K	<0.007%Cn/10K	<0.007%Cn/10K
Temperature effect on Span	<0.03%Cn/10K	<0.03%Cn/10K	<0.01%Cn/10K	<0.01%Cn/10K	<0.005%Cn/10K	<0.005%Cn/10K
Input resistance	644Ω～656Ω	644Ω～656Ω	644Ω～656Ω	644Ω～656Ω	644Ω～656Ω	644Ω～656Ω
Rated output	609Ω～611Ω	609Ω～611Ω	609.5Ω～610.5Ω	609.5Ω～610.5Ω	609.5Ω～610.5Ω	609.5Ω～610.5Ω
Insulation resistance	>5000×10⁶Ω	>5000×10⁶Ω	>5000×10⁶Ω	>5000×10⁶Ω	>5000×10⁶Ω	>5000×10⁶Ω
Nominal supply voltage	4～24V	4～24V	4～24V	4～24V	4～24V	4～24V
Maximum supply voltage	28V	25V	28V	25V	28V	25V
Nominal ambient temperature range	-10℃～+50℃	-10℃～+50℃	-10℃～+50℃	-10℃～+50℃	-10℃～+40℃	-10℃～+40℃
Usable ambient temperature range	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃
Storage ambient temperature range	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃	-40℃～+95℃
Explosion-proof certification in Japan	【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA)	【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA)	【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA)	【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA)	【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA)	【JPEx】Ex ia ⅡC T6 Ga(DEK19.0066/DEKRA)
Conforms to overseas explosion protection standards	【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga	【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga	【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga	【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga	【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga	【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga
Class of protection	IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h)	IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h)	IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h)	IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h)	IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h)	IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h)
Material of element	Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent	Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent	Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent	Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent	Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent	Body: Stainless steel 1.4542 (DIN 17 440) S 604, S 622 (B.S), 17-4 PH equivalent
Cable specification	Polyethylene, 4 core shielded cable / length 5m / diameter 5mm / cable 4 x 0.35mm2	Polyethylene, 4 core shielded cable / length 5m / diameter 5mm / cable 4 x 0.35mm2	Polyethylene, 4 core shielded cable / length 5m / diameter 5mm / cable 4 x 0.35mm2	Polyethylene, 4 core shielded cable / length 5m / diameter 5mm / cable 4 x 0.35mm2	Polyethylene, 4 core shielded cable / length 5m / diameter 5mm / cable 4 x 0.35mm2	Polyethylene, 4 core shielded cable / length 5m / diameter 5mm / cable 4 x 0.35mm2
Wiring specification	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash	Applied voltage +red/-blue Output signal +green/-ash
Accessories	Earth wire 1pc	Earth wire 1pc	Earth wire 1pc	Earth wire 1pc	Earth wire 1pc	Earth wire 1pc
