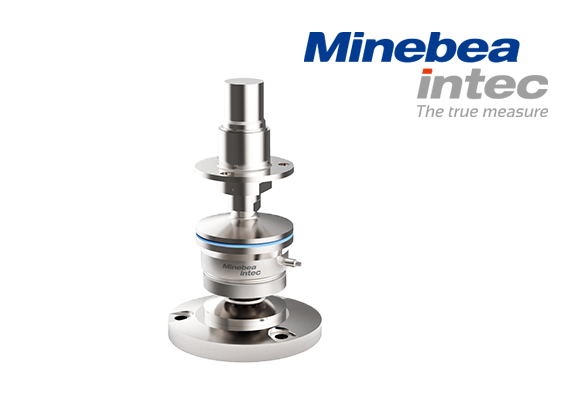

Hygienic Weighing Module

Novego PR6261

  • Minebea Intec
Print
Contact
Product information navigation

Features

■Hygienic all-in-one solution for reliable weighing of vessels
■Hygienic weighing module ensures efficient cleaning
■High degree of process reliability and precision thanks to the innovative side-force-resistant system
■Quick and easy commissioning due to smart add-on parts
■Durable, reliable weighing solution with excellent corrosion resistance

Specification

Specification name Specification contents Specification contents2
OIML Accuracy class C3 C6
Accuracy class 0.015%Emax 0.015%Emax
Safe load limit 150%Emax 150%Emax
Destructive load 300%Emax 300%Emax
Rated output 2.0mV/V 2.0mV/V
Rated output tolerance <0.07%Cn <0.07%Cn
Zero balance <1.5%Cn <1.5%Cn
Reproducibility <0.005%Cn <0.005%Cn
Creep <0.016%Cn <0.016%Cn
Non-linearity <0.01%Cn <0.01%Cn
Hysteresis <0.016%Cn <0.016%Cn
Temperature effect on Zero <0.01%Cn/10K <0.01%Cn/10K
Temperature effect on Span <0.01%Cn/10K <0.01%Cn/10K
Input resistance 1070Ω～1090Ω 1070Ω～1090Ω
Rated output 1009Ω～1011Ω 1009Ω～1011Ω
Insulation resistance >5000×10⁶Ω >5000×10⁶Ω
Nominal supply voltage 4～24V 4～24V
Maximum supply voltage 24 24
Nominal ambient temperature range -10℃～+40℃ -10℃～+40℃
Usable ambient temperature range　 -40℃～+95℃ -40℃～+95℃
Storage ambient temperature range -40℃～+95℃ -40℃～+95℃
Explosion-proof certification in Japan 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0069/DEKRA) 【JPEx】Ex ia ⅡC T6 Ga(DEK19.0069/DEKRA)
Conforms to overseas explosion protection standards 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga 【IECEx】Ex ia ⅡC T6 Ga/ 【ATEX】Ⅱ 1G Ex ia ⅡC T6 Ga
Class of protection IP68、IP69 IP68、IP69
Material of element Stainless steel {1.4418 (DIN EN10088-3) Stainless steel {1.4418 (DIN EN10088-3)
Cable specification Thermoplastic Elastomer (TPE),4-core shield cable Length:12m/DiameterΦ5㎜ 4×0.35mm2 Thermoplastic Elastomer (TPE),4-core shield cable Length:12m/DiameterΦ5㎜ 4×0.35mm2
Wiring specification Applied voltage +red/-blue Output signal +green/-ash Applied voltage +red/-blue Output signal +green/-ash

Table of P/N

Parts No. Rated Capacity
[kgf]		 Weight
[kg]		 Gross Weight
[kg]		 Packaged Size(W)
[cm]		 Packaged Size(L)
[cm]		 Packaged Size(H)
[cm]		 Specification sheet Instruction Manual Instruction manual 2 Instruction manual 3 Instruction Manual 4 Instruction manual 5 Instruction manual 6 Instruction manual 7 Movie

External view
