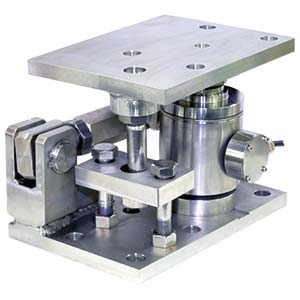

Features
・Equipped with lift-off protection fitting
・All stainless steel construction (Available for alloy steel construction)
・Most suitable for the tank where the vibration such as pugmill is generated.
Specification
| Specification name | Specification contents |
|---|---|
| Applicable load cell | CC010-500K～50T / CC010-2T～50T-C3 |
| Allowable horizontal moving length | ±8 mm (with directionarity) |
| Material | SUS304 or equivalent / SS400 or equivalent (Electroless nickel plating) |
| Accessories | Guide plate, Hexagon socket head cap screws, Instruction manual, Dummy load cell, Lift-off protection fitting, Washer, Earth cable |
Item list
| Item | Applicable load cell | Allowable horizontal load [kN] |
Allowable horizontal load [tf] |
Allowable lifting load [kN] |
Allowable lifting load [tf] |
Weight(Approx. ) [kg] |
Material | 3D CAD files [STEP] | CAD files[DXF] |
|---|
Download
Instruction Manual
Options
- Welding plate FCAW-*
