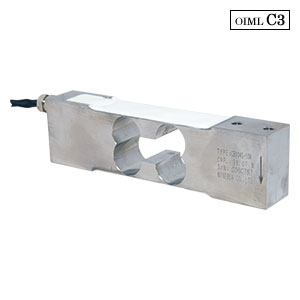

For commercial scale CB004S-＊-C3 OIML standard

Contact

Features

・Mid. capacity.
・OIML R60 C3 certified.
・All stainless steel structure.

Specification name	Specification contents
Accuracy class	OIML R60 C3
Maximum scale interval	3,000
Ultimate overload	10kg～100kg
Rated capacity	1g～10g
Minimum detected scale (Vmin)	150 %R.C.
Safe overload	200 %R.C.
Ultimate overload	2 mV/V±0.2 mV/V
Rated output	0.023 %R.O.
Non-linearity	0.023 %R.O.
Hysteresis	0.010 %R.O.
Repeatability	0.016 %R.O./30 min
Creep	0.016 %R.O./30 min
Creep recovery	12 V or less
Excitation, recommended	20 V
Excitation, maximum	±0.1 mV/V
Zero balance	400 Ω ~ 450 Ω
Input resistance	345 Ω ~ 350 Ω
Insulation resistance	2 000 MΩ or more (DC50 V)(between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－10 ℃～40 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.012 %LOAD/10 ℃
Class of protection	IP67 or equivalent
Material of element	Stainless steel
Durability	1,000,000 times with rated load applied.
Effect of eccentric load	・Size of loading plate is 400 mm x 400 mm at maximum. ・The center of loading plate and the center of load cell should be the same position ・Error is within 0.01 %R.O. applied with 1/2 of rated capacity at the position of 100 mm of eccentricity.

Parts No.	Rated capacity [kg]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
