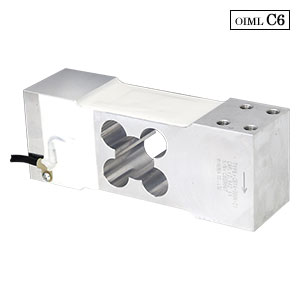

For commercial scale CB14-＊-C6 OIML standard

Contact

Features

・High capacity.
・Accurate and reliable model with OIML R60 C6 certified.

Specification name	Specification contents
Accuracy class	OIML R60 C6
Maximum scale interval	6,000
Rated capacity	100kg～500kg
Minimum detected scale (Vmin)	10g～50g
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	2.2 mV/V±0.11 mV/V
Non-linearity	0.012 %R.O.
Hysteresis	0.012 %R.O.
Repeatability	0.010 %R.O.
Creep	0.008 %R.O./30 min
Creep recovery	0.008 %R.O./30 min
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.11 mV/V
Input resistance	395 Ω ~ 415 Ω
Output resistance	345 Ω ~ 355 Ω
Insulation resistance	2,000 MΩ or more(DC50 V)(between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－10 ℃～40 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.010 %LOAD/10 ℃
Class of protection	IP64 or equivalent
Material of element	Alluminium alloy
Durability	1 000 000 times with rated load applied.
Effect of eccentric load	・Size of loading plate is 450 mm x 600 mm at maximum. ・The center of loading plate and the center of load cell should be the same position ・Error is within 0.02 %R.O. applied with 1/2 of rated capacity at the position of 150 mm of eccentricity.

Parts No.	Rated capacity [N]	Rated capacity [kN]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
