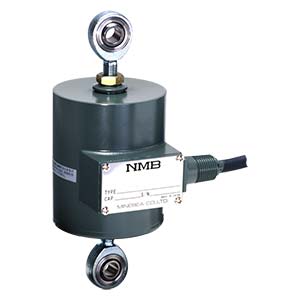

Tension type for industrial weighing systems

TCP1 series

Contact

Features

Suitable for the weighing systems, such as hopper, tank, etc.

Specification name	Specification contents
Rated capacity	490.3 N {50 kgf}～196.1 kN {20 tf}
Safe overload	150 %R.C. (TCP1-50K～100K：500 %R.C.)
Ultimate overload	200 %R.C. (TCP1-50K～100K：500 %R.C.)
Rated output	3 mV/V±0.003 mV/V
Non-linearity	0.05 %R.O.
Hysteresis	0.02 %R.O. (TCP1-50K～100K：0.05 %R.O.)
Repeatability	0.02 %R.O.. (TCP1-50K～100K：0.05 %R.O.)
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.03 mV/V
Input resistance	350 Ω±3.5 Ω
Output resistance	350 Ω±5 Ω
Insulation resistance	5,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～70 ℃
Temp. range, safe	－20 ℃～100 ℃
Temp. effect on zero	0.03 %R.O./10 ℃
Temp. effect on output	0.03 %LOAD/10 ℃
Class of protection	IP64 or equivalent
Material of element	Alloy steel
Paint	Painted with epoxy resin.(Munsell 6GY3.5/2 half-polished resemblance color)
Durability	1,000,000 times with rated load applied.

Parts No.	Rated capacity [N]	Rated capacity [kN]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]	Specification sheet	Instruction Manual
