DIC42(micro-computer built-in)

Used for mechanical driving for paper feeds, and transfer for multiple function printer and ATM etc.
Possible to promote many application and various fields.
Developped energy saving design with small size and high efficiency technologies.

Overview

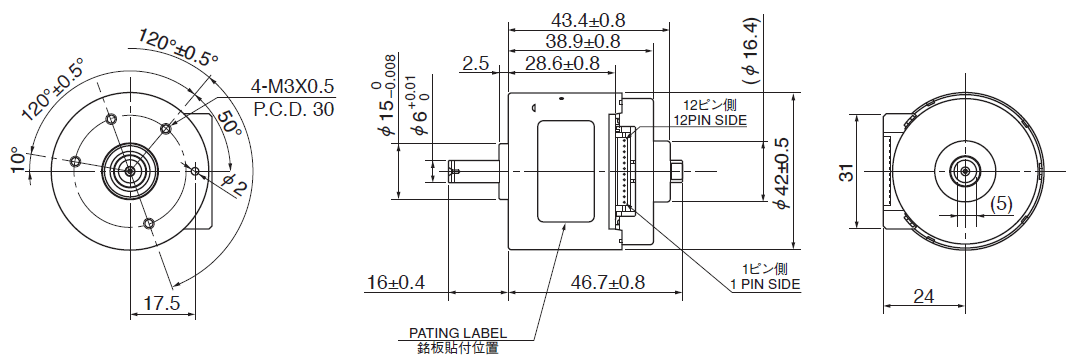

dia. 42 × L39, L44
Motor Type : 3 Phase inner rotor type DC Brushless Motor
Driver circuit and micro-computer built-in
Step angle : 0.9deg
Rotation speed : ～ 6,000min-1
Output power : 10W, 20W

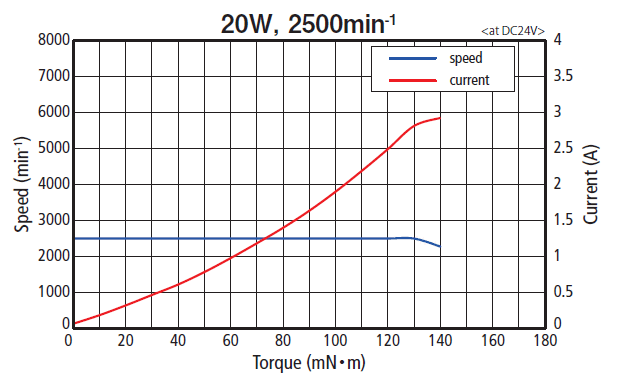

  • Rated Speed
    [min-1]    		 2500
    Rated torque
    [mN・m]    		 60
    Rated current
    [mA]    		 1000
    Rated efficiency
    [%]    		 69.5
    Continuous rating power
    [W]    		 12
    Short time rating power
    [W]    		 20

    Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
