Used for mechanical driving for paper feeds, and transfer for multiple function printer and ATM etc.
Possible to promote many application and various fields.
Developped energy saving design with small size and high efficiency technologies.
Overview

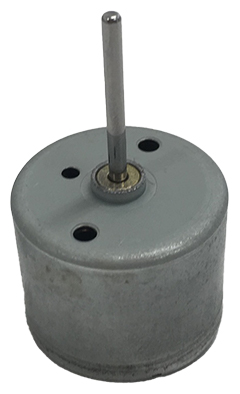

Motor Type : 3 Phase12 poles inner rotor type DC Brushless Motor
Driver circuit built-in
Bearing : Can be select to Oil retaining bearing or Ball bearing

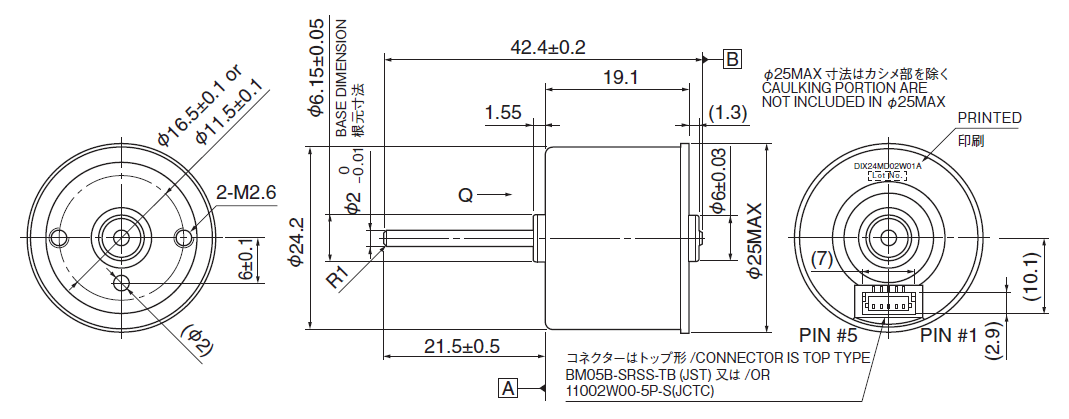

Connection : Connector 5pin
JST BM05B-SRSS-TB or JCTC 11002W00-5P-S
Driver IC : 1 chip IC is mounted.
-
-
-

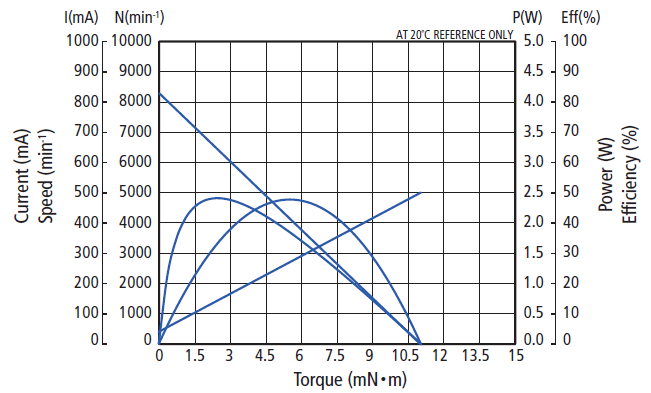

No load speed
[min-1]8250 Starting torque
[mN・m]11 Starting current
[mA]500 Maximal efficiency
[%]48.0 Speed at maximal efficiency
[min-1]4800 Life at 20 deg.C
[hour]5000 *at 24V
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
-
-
scroll
Gear Ratio
Type
Material
Step
Length L1
[mm]Total Length L1+motor
[mm]Rated Voltage
[V]No Load Speed
[min-1]No Load Current
[mA]Rated Load Torque
[mN・m]Rated Load Speed
[min-1]Rated Load Current
[mA]Max Rated Load torque
[mN・m]Max Instant Torque
[mN・m]1/4 Planetary Metal 1 13.1 32.2 24 2063 50 11 1500 172 49 73.5 1/16 Planetary Metal 2 16.2 35.3 24 516 50 39 375 172 73.5 110.3 1/24 Planetary Metal 2 16.2 35.3 24 344 50 58 250 172 73.5 110.3 1/64 Planetary Metal 3 19.3 38.4 24 129 50 70 111 110 98 147 1/96 Planetary Metal 3 19.3 38.4 24 86 50 98 75 110 98 147 This is a typical example. Other gear ratios are also available.
The notation is the value of the standard type.The torque exceeding the notation can be coped by changing gear material or gear thickness.
