Used for mechanical driving for paper feeds, and transfer for multiple function printer and ATM etc.
Possible to promote many application and various fields.
Developped energy saving design with small size and high efficiency technologies.
Overview
Motor Type : 3 Phase 4 holes inner rotor type DC Brushless Motor
High voltage and low voltage applicable : DC 24V ～ DC 105V
*High voltage version is under development
Driver : Driver circuit external (Standard)
/ Driver circuit internal (DC24V, 7W)
Output power : 7W ～
-
-
-
No load speed

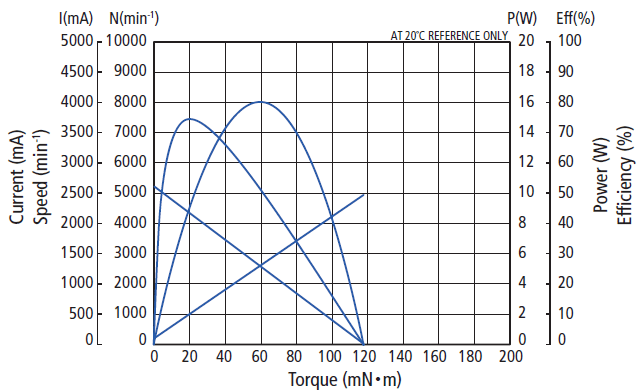

[min-1]5200 Starting torque
[mN・m]120 Starting current
[mA]2500 Maximal efficiency
[%]74.5 Speed at maximal efficiency
[min-1]4300 Life at 20 deg.C
[hour]5000 *at 24V
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
-
-
scroll
Gear Ratio
Type
Material
Step
Length L1
[mm]Total Length L1+motor
[mm]Rated Voltage
[V]No Load Speed
[min-1]No Load Current
[mA]Rated Load Torque
[mN・m]Rated Load Speed
[min-1]Rated Load Current
[mA]Max Rated Load torque
[mN・m]Max Instant Torque
[mN・m]1/25 Spur Metal 2 23 64 24 208 100 162 194 260 196 196 1/30 Spur Metal 2 23 64 24 173 100 194 162 260 196 245 1/50 Spur Metal 3 25 66 24 104 100 292 97 260 294 392 1/60 Spur Metal 3 25 66 24 87 100 294 82 235 294 441 1/84 Planetary Metal 3 45 86 24 62 100 326 58 235 1000 1500 This is a typical example. Other gear ratios are also available.
The notation is the value of the standard type.The torque exceeding the notation can be coped by changing gear material or gear thickness.
