DNQ08MF (Fe Mg) for home appliances No Plate No Cover

These motors are used in mechanical driving for photoconductive drums, paper feeds, and toners in copiers and other OA equipment. Small-size, high-efficiency technology helps make equipment more compact and save more energy.
Nd Mg: Neodymium magnets type
Fe Mg: Ferrite magnet type
With plate, with plate and cover type are available for "for home appliance" models. Prease refer to the PDF.

Overview

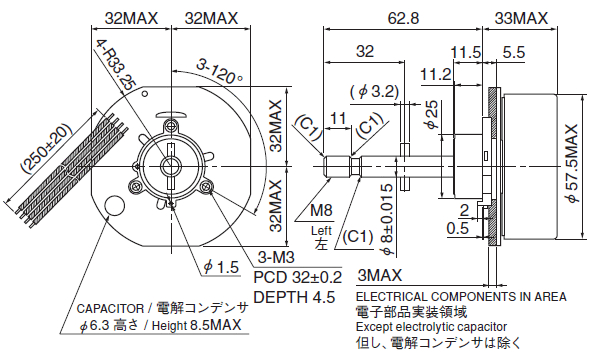

dia. 57 × L33 DC Brushless motor outer rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Control-Driver circuit built-in.
Compact, Light Weight and High Output
High Efficiency
Low Noise
Overcurrent and Locked Rotor Protection

Operating Voltage Min. [VDC]	21.6
Operating Voltage Nom. [VDC]	24
Operating Voltage Max. [VDC]	26.4
Operating Speed Min. [min-1]	300
Operating Speed Nom. [min-1]	1000
Operating Speed Max. [min-1]	3000
Continuous Rating Power Nom. [W]	10
Continuous Rating Power Max. [W]	13
Operating Temperature Min. [deg.C]	0
Operating Temperature Max. [deg.C]	50
Operating Humidity Min. [%RH]	15
Operating Humidity Max. [%RH]	90
Motor Weight Nom. [g]	250

Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
