BCL3 Geared Motor

These motors are used in driving and electrical components for digital AV equipment and PC peripheral devices. High-precision low vibration technology and bearing technology help to create faster equipment.

Overview

3 Phase outer rotor type DC Brushless Motor
Gear Unit : PG-22 Type

Interface Power Supply
GND
FG
VSP or PWM
CW / CCW switch

Connection : Connector
(JST : BM05B-SRSS-TB or JCTC : 11002W00-5P-S)

scroll

Gear Ratio	Rated Load Torque [mN・m]	Max Torque [mN・m]	Dimension L [mm]	Efficiency [%]
1/4	49	73.5	13.1	85
1/16	73.5	110.3	16.2	72
1/24	73.5	110.3	16.2	72
1/64	98	147	19.3	61
1/96	98	147	19.3	61

scroll

Gear Ratio

Rated Load Torque
[mN・m]

Max Torque
[mN・m]

Dimension L
[mm]

Efficiency
[%]

1/4 24.5 39.2 13.1 13.1

1/16 34.3 58.5 16.2 16.2

1/24 34.3 58.8 16.2 16.2

These are specifications of the geaar unit PG-22 Type. For the specification of motor, please visit BCL3.
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

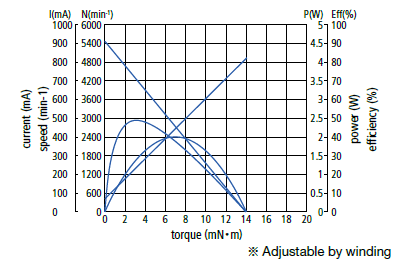

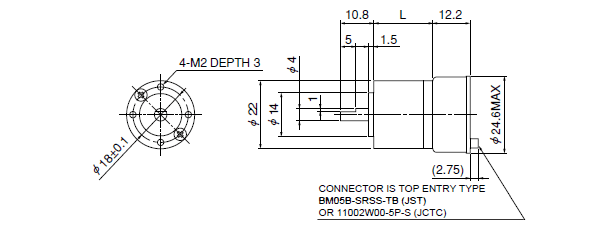

Gear Appearance

Gear Unit : PG-22 Type

Motor Appearance

BLDC motor : BCL3 Type
Associated Data
- PDF product catalog
- BCL3

Gear Ratio	Rated Load Torque [mN・m]	Max Torque [mN・m]	Dimension L [mm]	Efficiency [%]
1/4	24.5	39.2	13.1	13.1
1/16	34.3	58.5	16.2	16.2
1/24	34.3	58.8	16.2	16.2
