BKL4 Geared Motor

These motors are used in driving and electrical components for digital AV equipment and PC peripheral devices. High-precision low vibration technology and bearing technology help to create faster equipment.

Overview

3 Phase outer rotor type DC Brushless Motor
Gear Unit : ST-35 Type

BLDC motor : BKL4 Type

Interface Power Supply
GND
FG
BRK
PWM
CW / CCW switch

Connection : Connector (JST : BM06B-NSHSS-TBT)

scroll

Gear Ratio	Gear Type	Gear Material	Gear Step	Gear Box Length L1 [mm]	Total Length L1+motor [mm]	Rated Voltage [V]	No Load Speed [r/min]	No Load Current [mA]	Rated Load Torque [mN・m]	Rated Load Speed [r/min]	Rated Load Current [mA]	Max Rated Load torque [mN・m]	Max Instant Torque [mN・m]
1/10	Spur	Metal	1	20.5	35.3	12	415	100	36	384	250	98	98
1/25	Spur	Metal	2	23	37.8	12	166	100	81	154	250	196	196
1/60	Spur	Metal	3	25	39.8	12	69	100	175	64	250	294	441
1/100	Spur	Metal	4	25	39.8	12	42	100	262	38	250	294	735
1/120	Spur	Metal	4	25	39.8	12	35	100	315	32	250	588	882

These are specifications of the geaar unit ST-35 Type. For the specification of motor, please visit BKL4.
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
Gear ratio is a typical example. Other gear ratios are also available.
The notation of Max Rated Load Torque and Max Instant Torque is the value of the standard type.
The torque exceeding the notation can be coped by changing gear material or gear thickness.

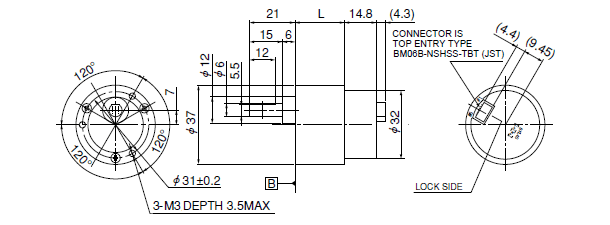

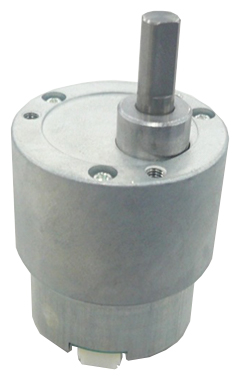

Gear Appearance

Gear Unit : ST-35 Type

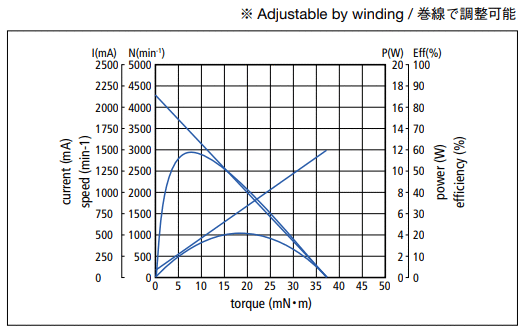

Motor Appearance
