Overview
Shape : Flat

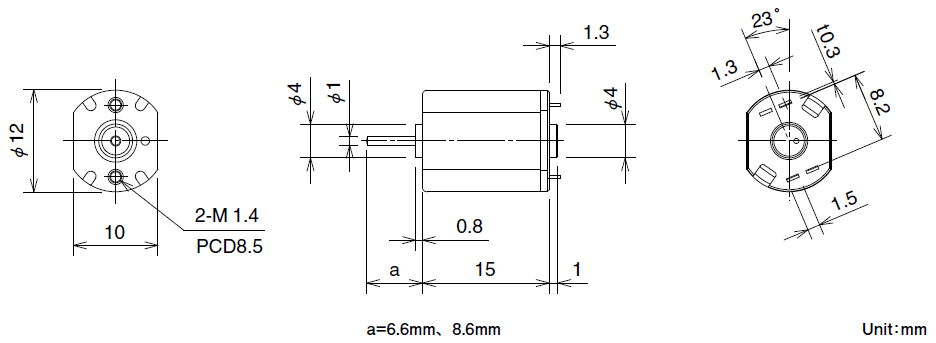

Shaft Length : a = 6.6mm, 8.6mm
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Operating Voltage
lower limit
[V]Operating Voltage
upper limit
[V]Rated Voltage
[V]No load speed
[min-1]No Load Current
[mA]Rated Load
[gf･cm]Rated Load
[mN・m]Rated Load Speed
[min-1]Rated Load Current
[mA]Starting Torque
[gf･cm]Starting Torque
[mN・m]Starting current
[mA]Shaft Length
[mm]M1N6FB08C 1.0 5.0 5.0 14100 30.0 2.00 0.20 11600 91 11.20 1.10 366 6.6 M1N6GB95F 1.0 5.0 5.0 15700 35.0 2.00 0.20 13786 108 16.70 1.64 637 8.6 -
-
-
