M22E-13G

These models feature an integrated gearbox to deliver high torque at low speeds. For applications where a standalone DC motor provides insufficient torque, optimal specifications tailored to specific needs are available. Integrating the gearbox directly with the motor eliminates retrofitting labor and contributes to space-saving designs. The lineup features metal brush models for excellent startup responsiveness, alongside carbon brush models designed for an extended service life under high-voltage and high-current conditions.

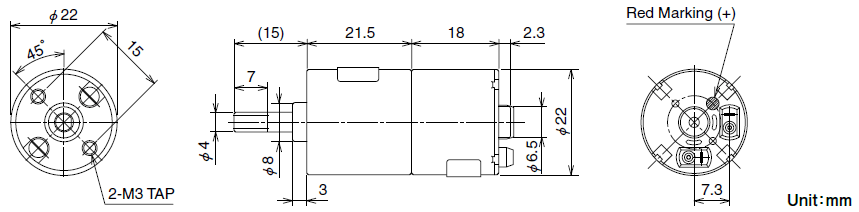

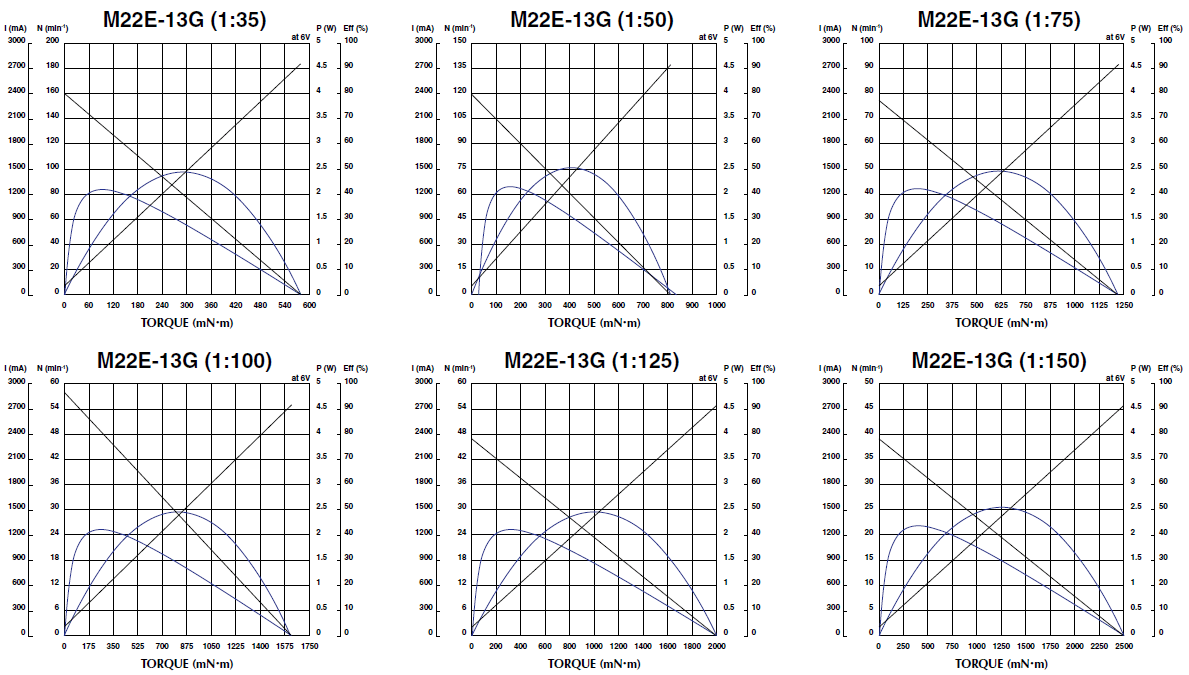

Applications, overall views, specifications, and performance curves for each model are detailed in the “Product Catalog".

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Max Rated Load Torque [gf･cm]	Max Rated Load Torque [mN・m]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Gear Ratio	Gear Step	Gear Box L1 [mm]
M22E-13G(1:35)	6.0	160	100.0	1000.00	98.00	135	480	2550.000	250.0	5918.00	580.00	1:35	4	21.5
M22E-13G(1:50)	6.0	119	100.0	1000.00	98.00	104	370	2550.000	250.0	8265.00	810.00	1:50	4	21.5
M22E-13G(1:75)	6.0	77	100.0	1500.00	147.00	68	420	4080.000	400.0	12448.00	1220.00	1:75	5	21.5
M22E-13G(1:100)	6.0	58	100.0	2000.00	196.00	51	430	5100.000	500.0	16530.00	1620.00	1:100	5	21.5
M22E-13G(1:125)	6.0	47	100.0	2000.00	196.00	42	360	5100.000	500.0	20408.00	2000.00	1:125	5	21.5
M22E-13G(1:150)	6.0	39	100.0	2000.00	196.00	36	310	5100.000	500.0	25510.00	2500.00	1:150	5	21.5
