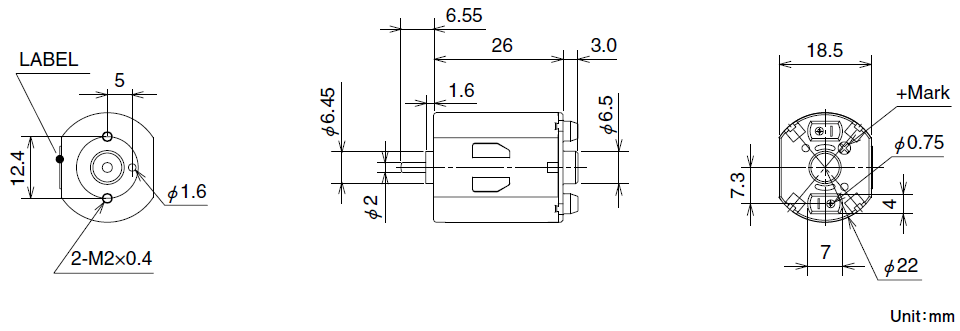

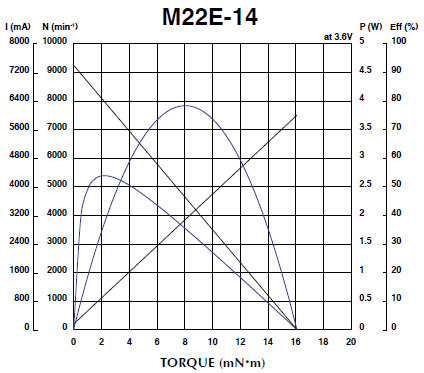

M22E-14

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]
    M22E-14 2.5 4.0 3.6 9300 155.0 19.40 1.90 8200 650 164.00 16.10 6000

    *Characteristics and the shaft length can be customized.
