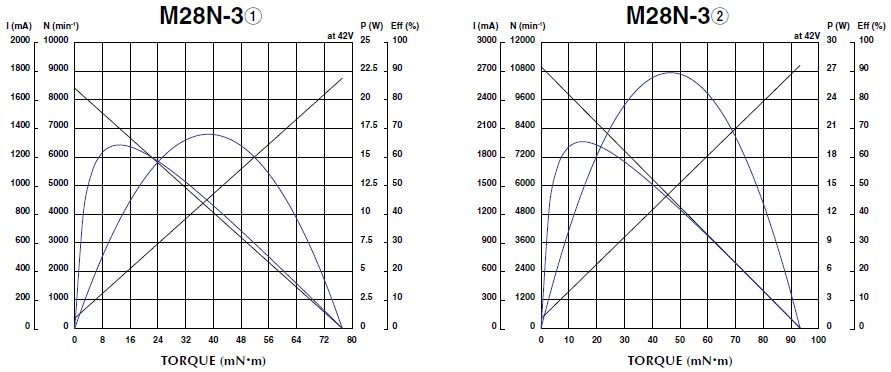

M28N-3

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]
    M28N-3① 12.0 46.0 42.0 8400 70.0 270.00 26.50 5513 647 787.00 77.10 1750
    M28N-3② 12.0 46.0 42.0 11000 100.0 284.00 27.80 7719 894 951.00 93.20 2763

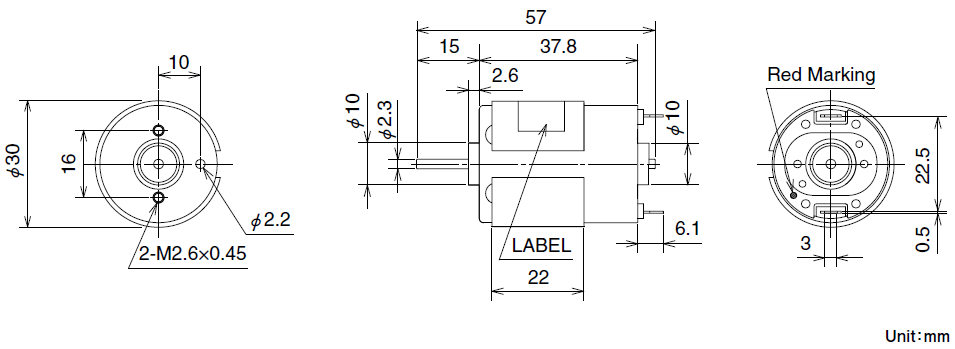

    *Characteristics and the shaft length can be customized.
