M36N-4E

These standard brushed DC motors offer high versatility for general use. A wide variety of sizes and outputs are available, from small and thin profiles to high-torque applications, enabling optimal performance tuning for your specific use case. DC motors are selected based on size, application, standard load, and rotational speed. Additionally, a “Product Catalog” is available to aid in selection, featuring brushed DC motor structural diagrams, methods for reading performance curves, and factors causing performance changes.

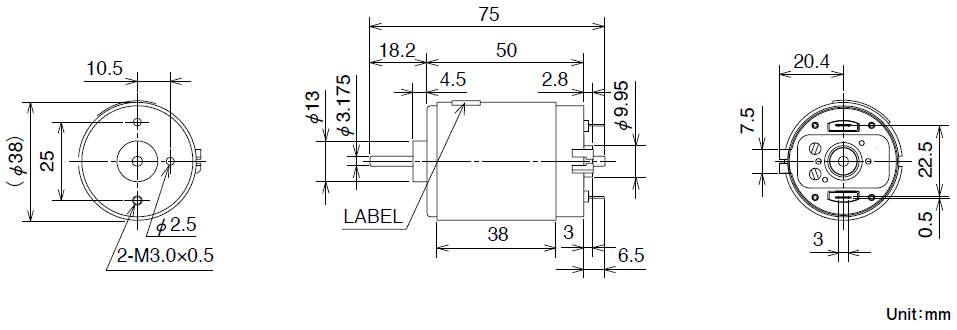

[Outer dimensions]
Round: 24 mm – 35.7 mm
Flat　 : 8 mm – 24.2 mm
Square (S series): 8 mm – 30 mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]

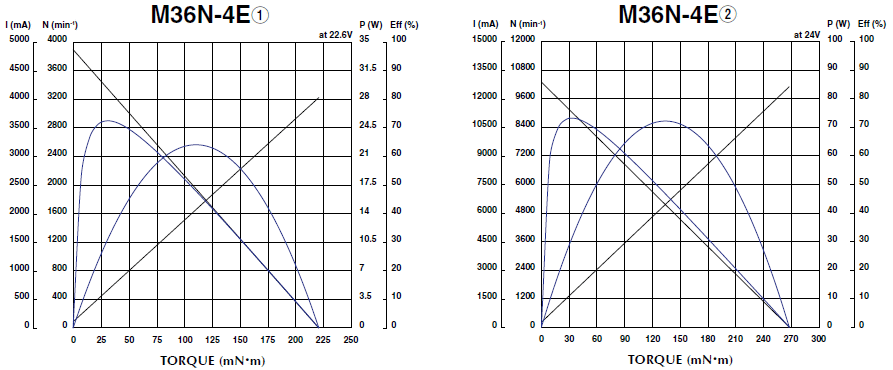

M36N-4E①	21.6	26.4	24.0	3800	70.0	704.10	69.00	2419	1239	1936.70	189.80	3288	17.0
M36N-4E②	24.0	28.0	24.0	10300	250.0	339.80	33.30	9100	1806	2724.50	267.00	12631	18.2

*Characteristics and the shaft length can be customized.

Associated Data
- PDF product catalog
