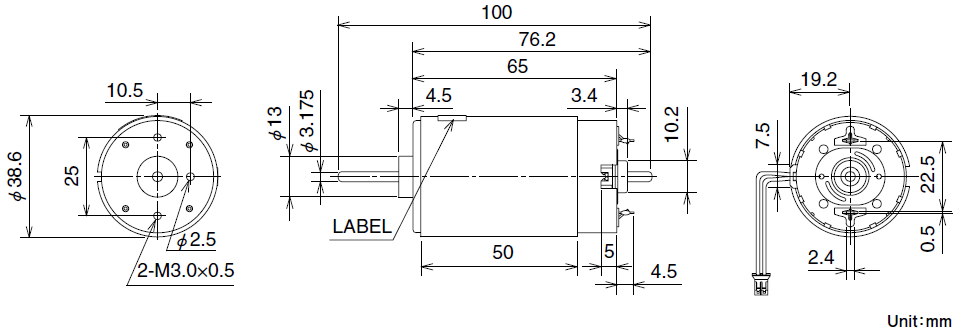

M36N-5E

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

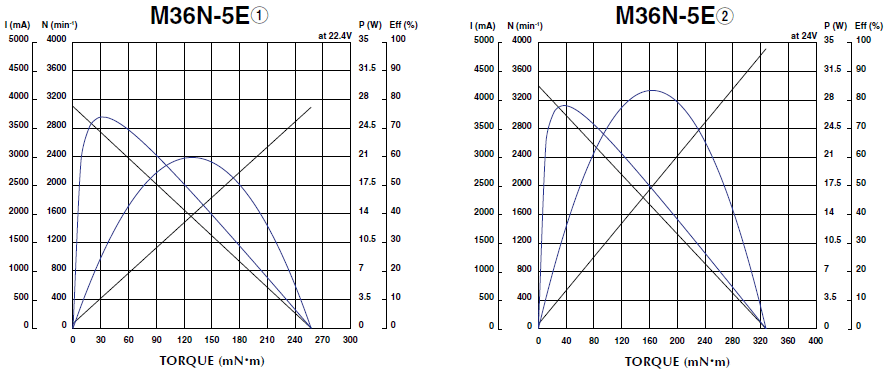

    M36N-5E① 12.0 38.5 22.4 3100 80.0 561.00 55.00 2437 889 2624.00 257.00 3862
    M36N-5E② 12.0 27.0 24.0 3400 80.0 840.00 82.30 2546 1290 3343.00 328.00 4898

    *Characteristics and the shaft length can be customized.
