MDN3R

Maintenance Products

Overview

Shape : Round
Shaft Length : a = 6mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

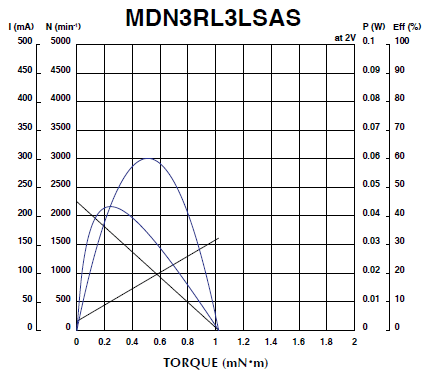

    MDN3RL3LSAS 0.7 6.0 2.0 2250 16.0 4.00 0.39 1500 68 11.90 1.17 172 5.0

  • Associated Data
