PAN14(Female Terminal)

Overview

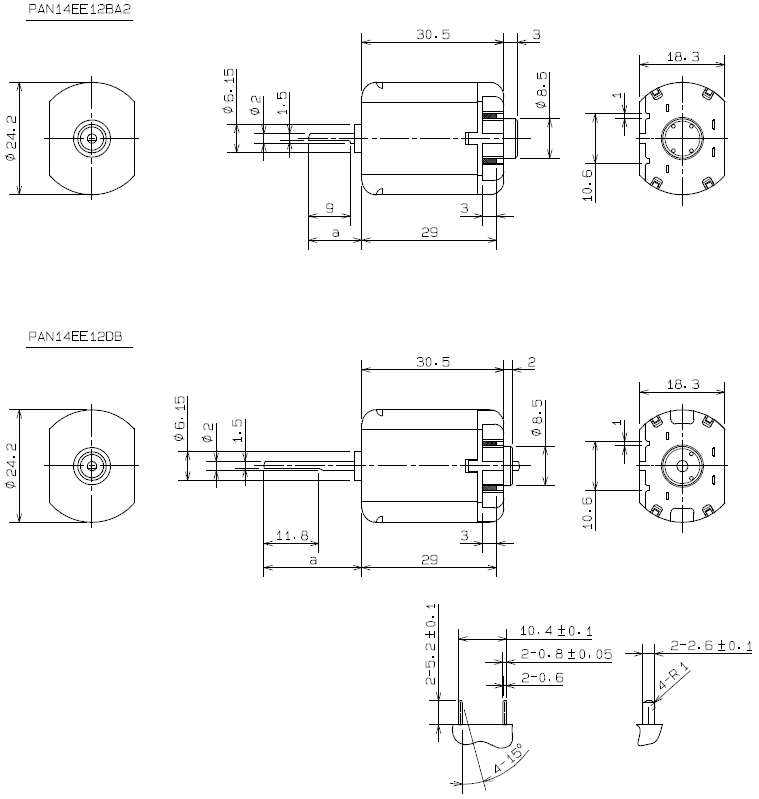

Shape : Flat
Shaft Length : a = 11.5 mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

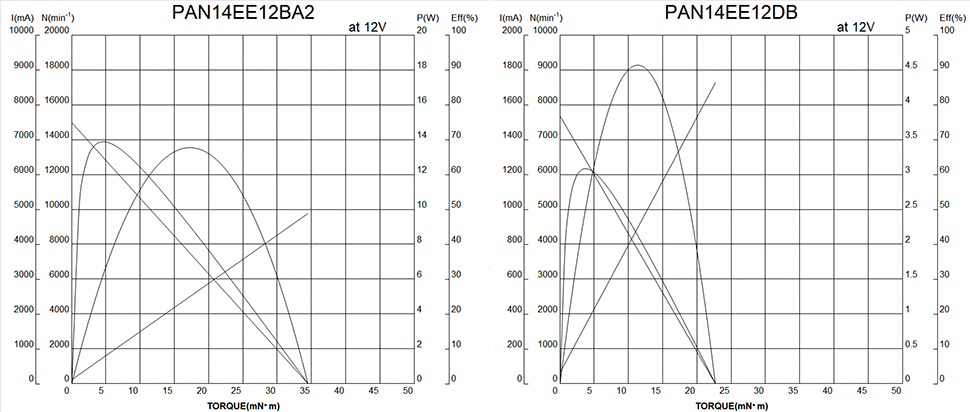

    PAN14EE12BA2 9.0 16.0 12.0 14974 116.0 50.00 4.90 12850 792 352.40 34.50 4878
    PAN14EE12DB 9.0 16.0 12.0 7683 66.0 50.00 4.90 6025 424 231.50 22.70 1726
