PPG7

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

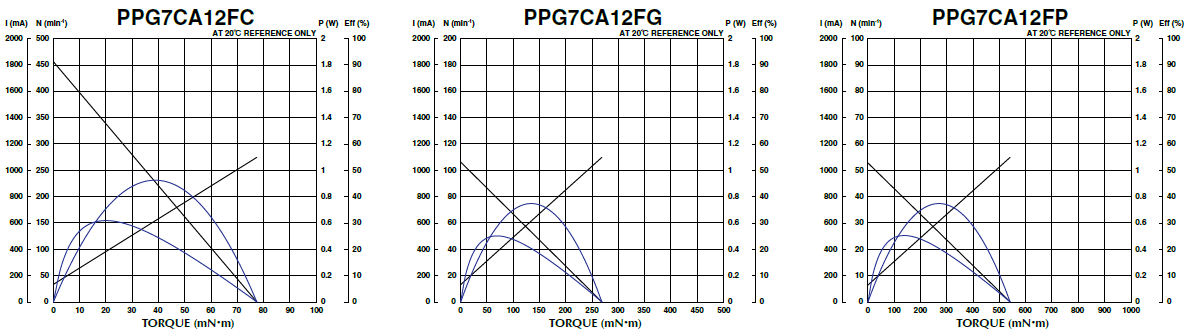

Model	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Max Rated Load Torque [gf･cm]	Max Rated Load Torque [mN・m]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Gear Ratio	Weight [g]
PPG7CA12FC	6.0	456	133.0	153.00	15.00	368	320	263.300	25.8	790.00	77.00	1:34	18.0
PPG7CA12FG	6.0	106	131.0	153.00	15.00	100	185	255.000	25.0	2741.00	269.00	1:146	18.0
PPG7CA12FP	6.0	53	128.0	153.00	15.00	52	160	255.000	25.0	5520.00	541.00	1:294	18.0

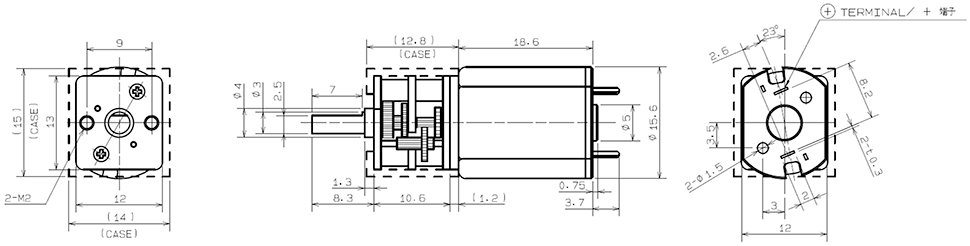

The final appearance shape and characteristics need to be discussed.
