SE15H

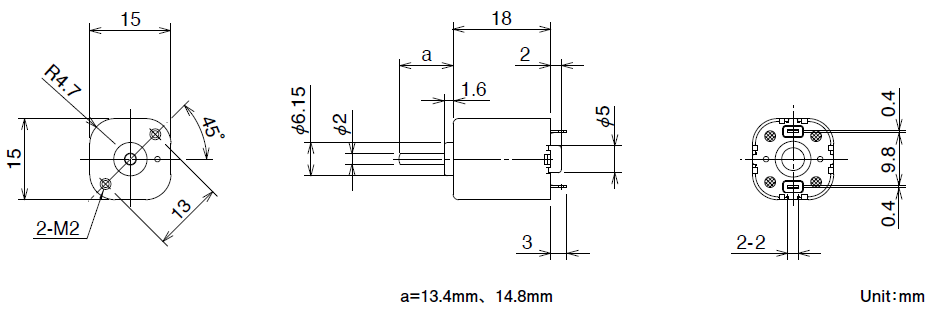

Overview

Shape : Square
Shaft Length : a = 14.8mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

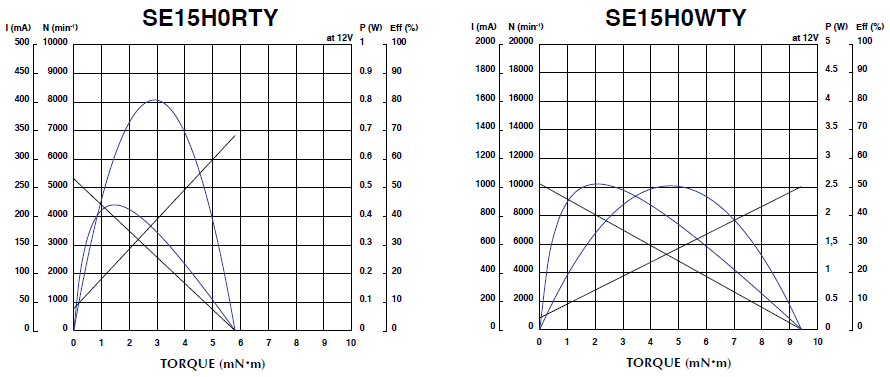

    SE15H0RTY 8.0 13.0 12.0 5315 40.0 15.30 1.50 3916 118 58.20 5.70 335 13.4
    SE15H0WTY 8.0 13.0 12.0 10200 80.0 20.40 2.00 8030 275 96.00 9.41 1000 13.4

  • Associated Data
