SE15K

Overview

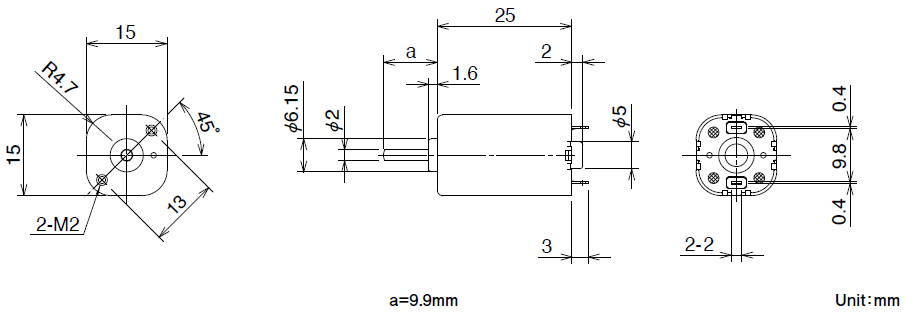

Shape : Square
Shaft Length : a = 9.9mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

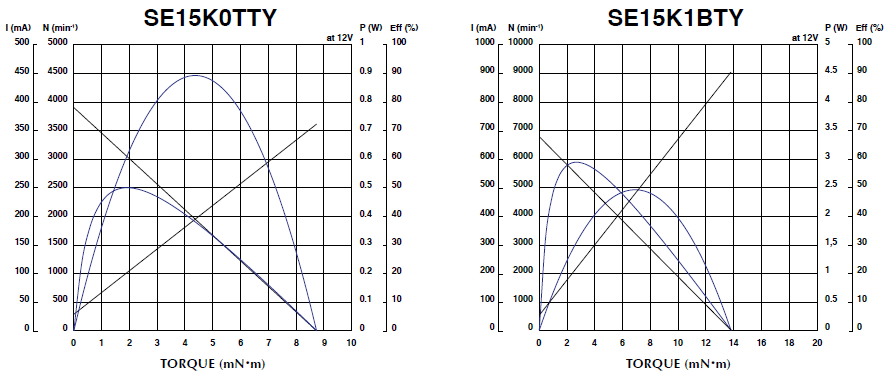

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
SE15K0TTY	8.0	13.0	12.0	3935	29.0	15.30	1.50	3265	85	89.80	8.80	360	9.9
SE15K1BTY	8.0	13.0	12.0	6780	52.0	25.50	2.50	5585	205	141.00	13.90	905	9.9
