SE15M

Overview

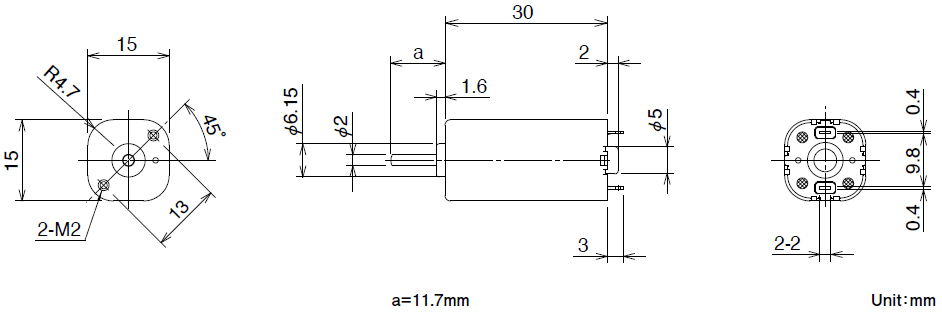

Shape : Square
Shaft Length : a = 11.7mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

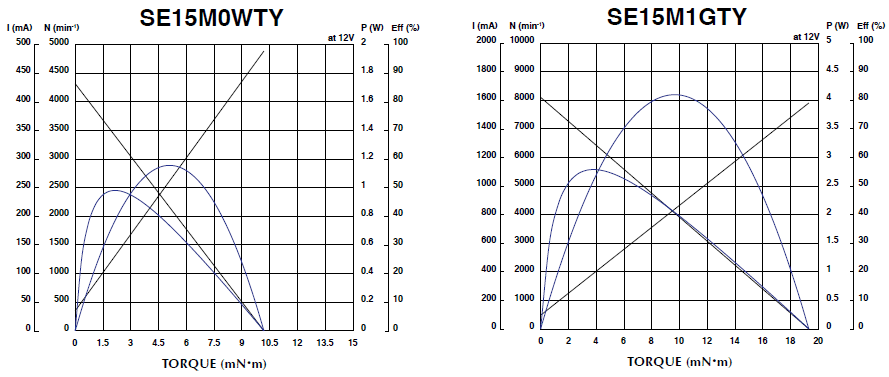

    SE15M0WTY 8.0 13.0 12.0 4320 35.0 20.40 2.00 3475 124 104.00 10.20 490 11.7
    SE15M1GTY 8.0 13.0 12.0 8100 95.0 40.80 4.00 6400 400 197.00 19.30 1580 11.7
