SE24M

Overview

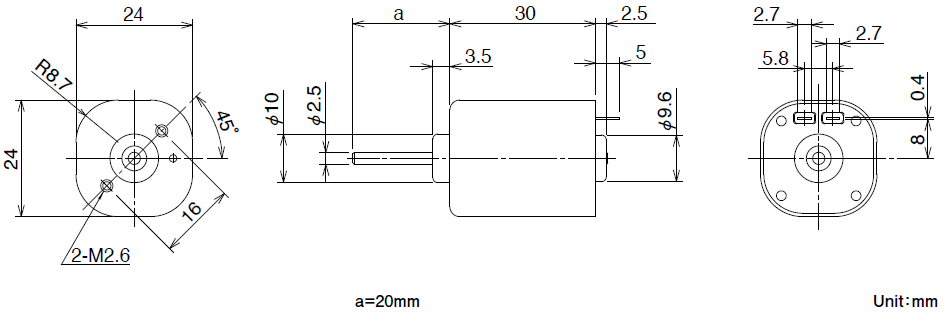

Shape : Square
Shaft Length : a = 15mm, 20mm, 25mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

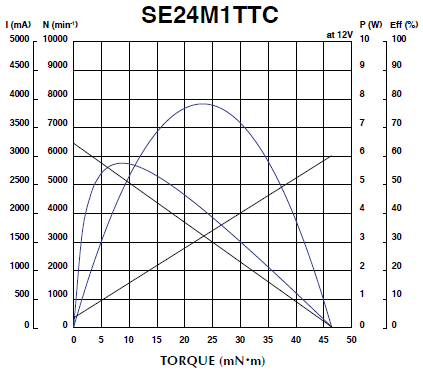

    SE24M1TTC 8.0 13.0 12.0 6433 159.0 102.00 10.00 5046 772 473.00 46.40 3000 20.0
