Overview

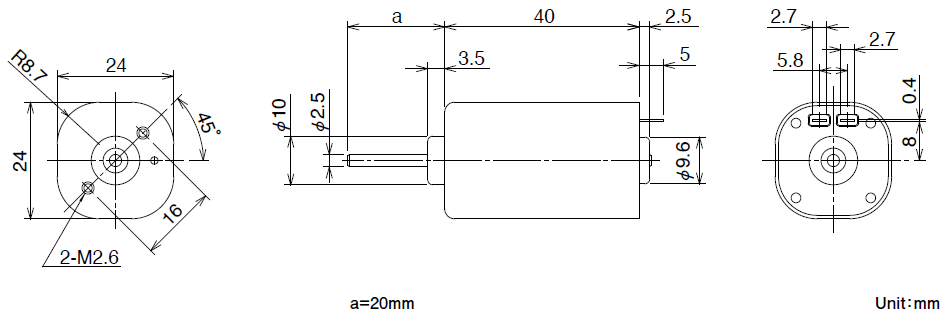

Shape : Square
Shaft Length : a = 15mm, 20mm, 25mm
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Operating Voltage
lower limit
[V]Operating Voltage
upper limit
[V]Rated Voltage
[V]No load speed
[min-1]No Load Current
[mA]Rated Load
[gf･cm]Rated Load
[mN・m]Rated Load Speed
[min-1]Rated Load Current
[mA]Starting Torque
[gf･cm]Starting Torque
[mN・m]Starting current
[mA]Shaft Length

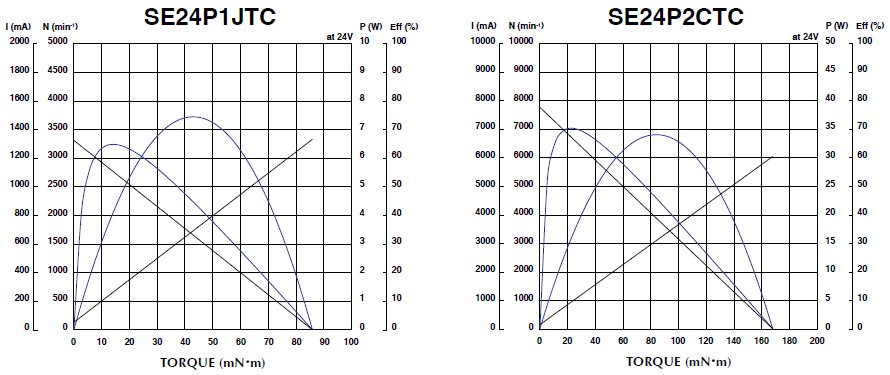

[mm]SE24P1JTC 20.0 26.0 24.0 3274 40.0 204.00 20.00 2508 343 871.00 85.40 1335 20.0 SE24P2CTC 20.0 26.0 24.0 7772 145.0 204.00 20.00 6843 850 1707.00 167.00 6047 20.0 -
-
-
