SE8F

Overview

Shape : Square
Shaft Length : a = 7.3mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

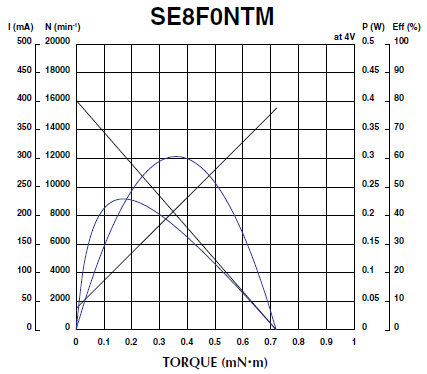

    SE8F0NTM 1.0 5.0 4.0 16035 37.0 2.00 0.20 11625 133 7.35 0.72 386 4.5

  • Associated Data
