SE8G

Overview

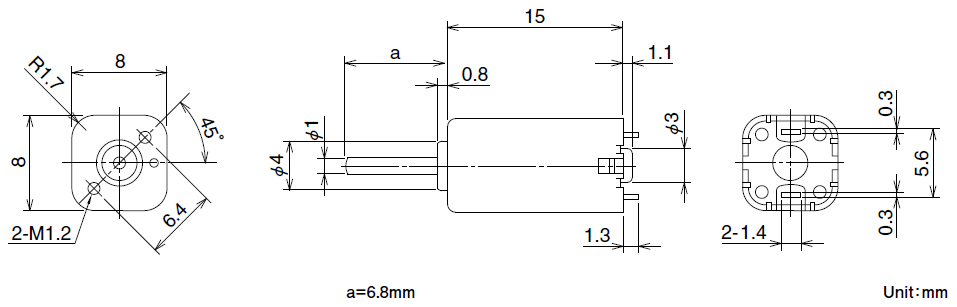

Shape : Square
Shaft Length : a = 6.8mm, 8.8mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

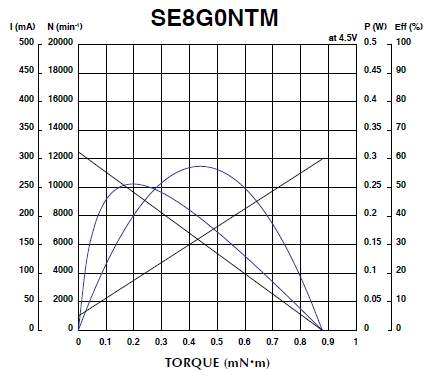

    SE8G0NTM 1.0 5.0 4.5 12500 25.0 2.00 0.20 9650 88 9.00 0.88 300 6.8

  • Associated Data
