SG10G

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Max Rated Load Torque [gf･cm]	Max Rated Load Torque [mN・m]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Gear Ratio	Gear Step	Gear Box L1 [mm]	Weight [g]

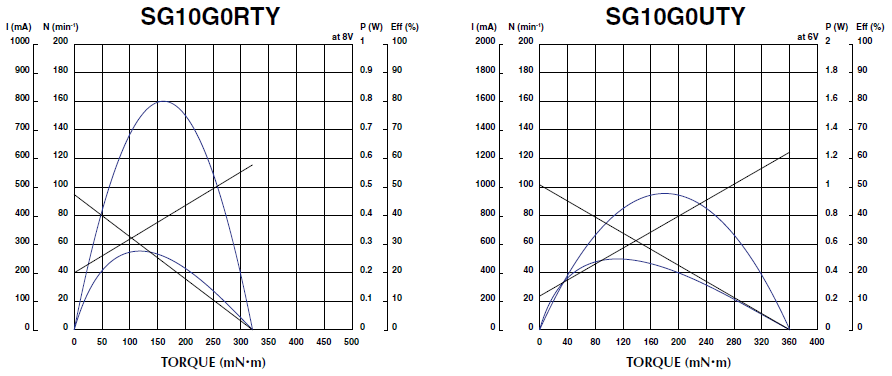

SG10G0RTY	8.0	95	199.0	509.00	50.00	80	258	1631.000	160.0	3263.00	320.00	1:144	3	21.9	18.4
SG10G0UTY	6.0	101	235.0	509.00	50.00	87	376	1835.000	180.0	3670.00	360.00	1:144	3	21.9	18.4

The final appearance shape and characteristics need to be discussed.
Depending on the required quantities, it might be difficult to accept the request.
