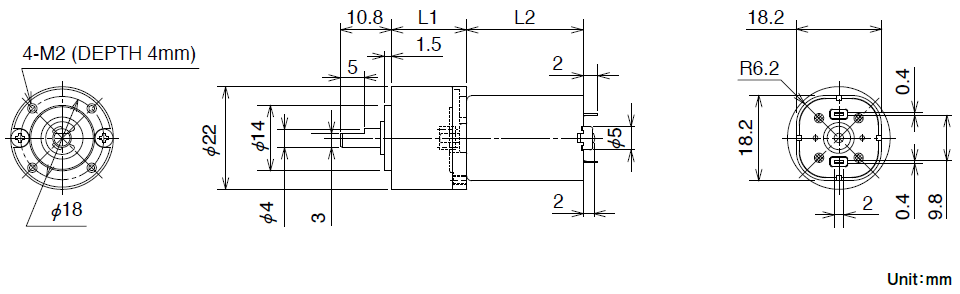

SG18J, K, M

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Max Rated Load Torque [gf･cm]	Max Rated Load Torque [mN・m]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Gear Ratio	Gear Step	Gear Box L1 [mm]	Motor L2 [mm]	Weight [g]
SG18J1L(1:16)	6.0	353	180.0	306.00	30.00	299	445	918.000	90.0	1969.00	193.00	1:16	2	16.2	20	64.4
SG18J1L(1:24)	6.0	235	190.0	612.00	60.00	187	540	1429.000	140.0	2949.00	289.00	1:24	2	16.2	20	64.4
SG18K1M(1:16)	6.0	224	155.0	612.00	60.00	170	487	1531.000	150.0	2612.00	256.00	1:16	2	16.2	25	66.2
SG18M1L(1:16)	12.0	314	145.0	1224.00	120.00	242	600	2551.000	250.0	5102.00	500.00	1:16	2	16.2	30	74.6

The final appearance shape and characteristics need to be discussed.
