SG8G

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

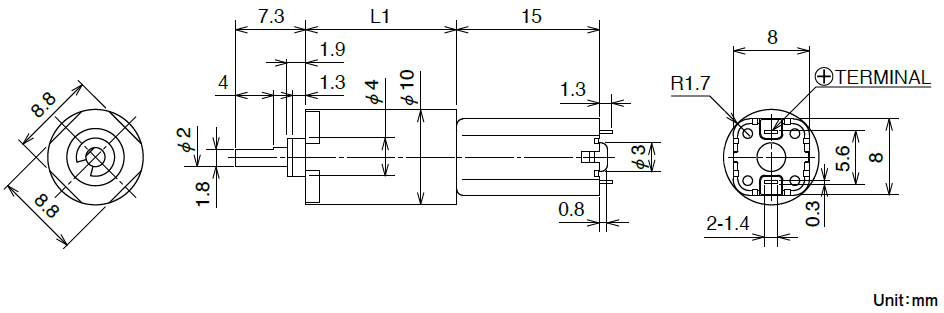

Model	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Max Rated Load Torque [gf･cm]	Max Rated Load Torque [mN・m]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Gear Ratio	Gear Step	Gear Box L1 [mm]	Weight [g]

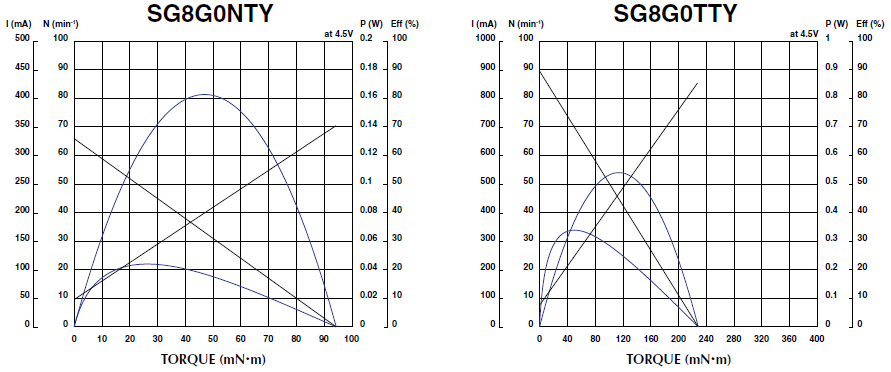

SG8G0NTY	4.5	66	48.0	101.00	10.00	59	80	480.000	47.1	961.00	94.00	1:151	3	15.9	11.8
SG8G0TTY	4.5	90	68.0	203.00	20.00	83	137	1162.000	114.0	2335.00	229.00	1:249	4	19.0	13.8

The final appearance shape and characteristics need to be discussed.
Depending on the required quantities, it might be difficult to accept the request.
