SR10M

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

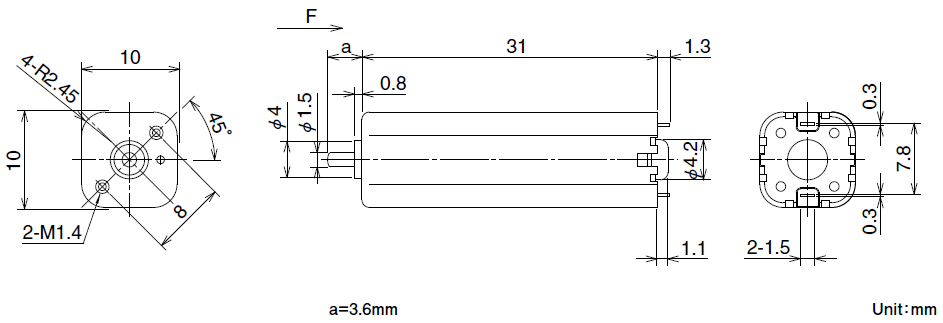

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]

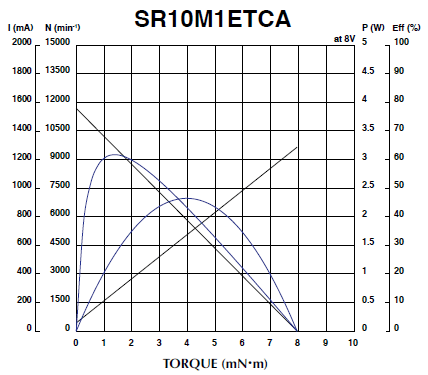

SR10M1ETCA	3.0	9.0	8.0	11650	57.0	34.70	3.40	6430	610	77.40	7.59	1280	3.6
