SR18M

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

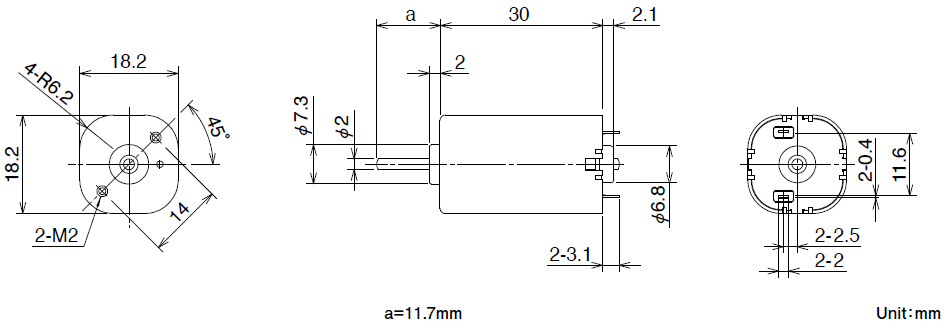

    Shaft Length
    [mm]

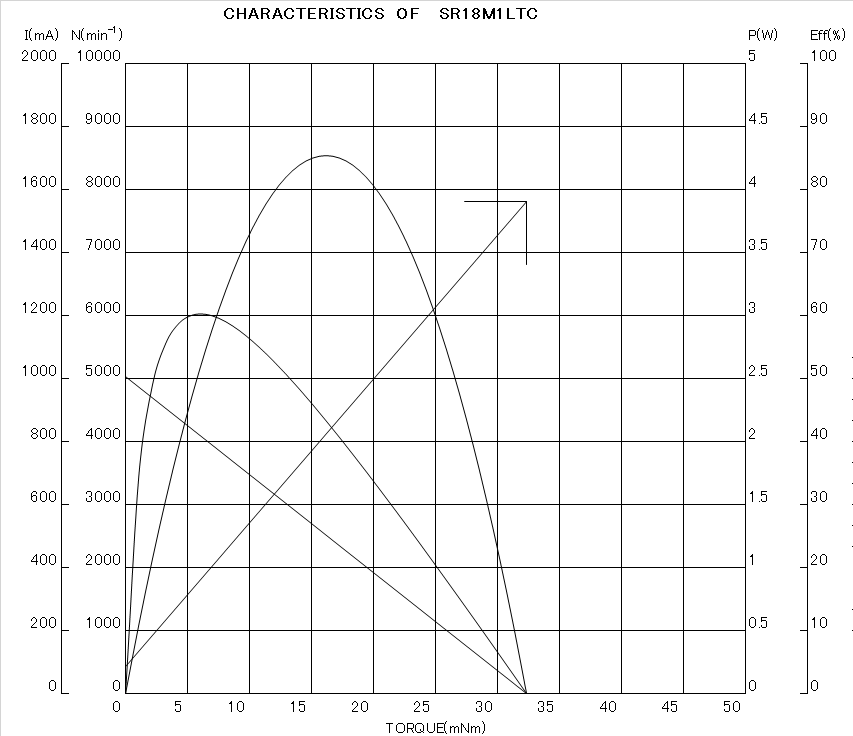

    SR18M1LTC 8.0 13.0 12.0 5000 83.0 102.00 10.00 3320 540 330.00 32.40 1560 11.7
    SR18M1TTC 8.0 13.0 12.0 7472 119.0 102.00 10.00 5950 850 501.00 49.20 3730 11.7
