SV30R

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]

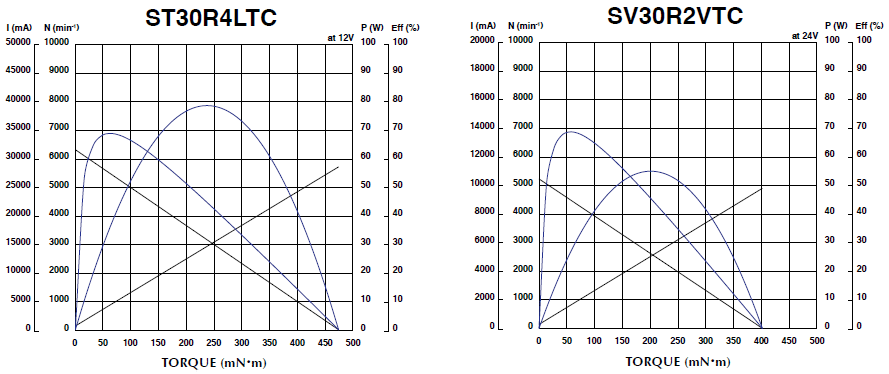

ST30R4LTC	8.0	13.5	12.0	6335	666.0	510.00	50.00	5669	3611	4847.00	475.00	28661	13.0
SV30R2VTC	21.6	26.4	24.0	5231	270.0	600.00	58.80	4465	1667	4092.00	401.00	9803	13.0
