Features
1. Simplified pump structure.
2. Low cost pump by reducing the number of parts and the number of assembly man-hours.
3. The product is patented by MinebeaMitsumi.
4. Assembly method unique to MinebeaMitsumi. A snap fit used to settle the pump unit.
Application case : Blood Pressure Monitor for Home Appliance
Specification
| Item | Specifications | Condition |
|---|---|---|
| Rated Voltage [DC V] |
6 | |
| Used Voltage Range [DC V] |
3.0 ～ 7.0 | |
| Pressing Time [sec max.] |
11.5 | Time to add pressure from 0 to 300mmHg to a tank of 500cc by rated voltage (DC 6V). |
| Current Consumption [mA max.] |
430 | Maximum current consumption during adding pressure from 0 to 300mHg to a tank of 500cc in rated voltage (DC 6V). |
| Leakage of Air [mmHg/60sec max.] |
3 | Decrease of pressure at 30 second after stop pumping to a tank of 500cc up to 40±10mmHg and 300 ± 10mmHg. |
| Maximum Pressure [mmHg min.] |
400 | |
| Noise [dB max.] |
55 | Noise at 30cm from the pump. |

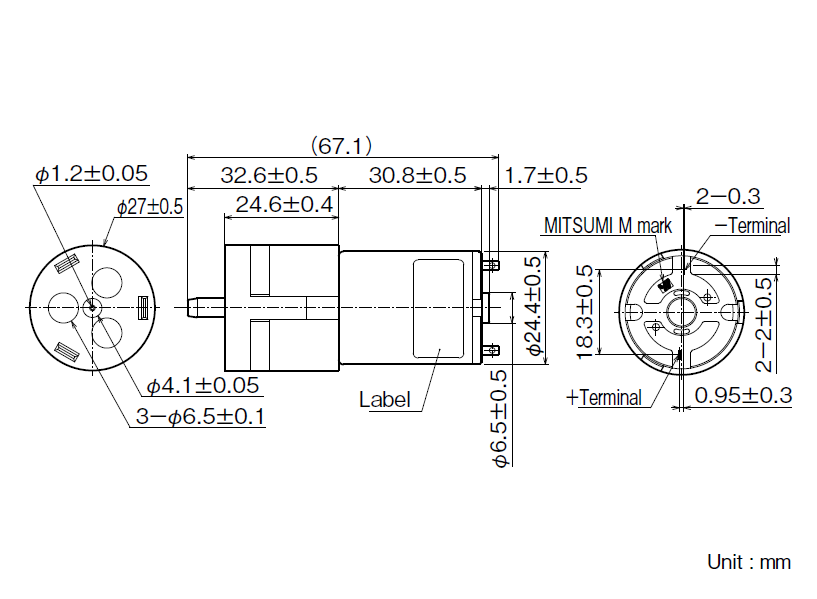

Overall View
