Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.
-
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll

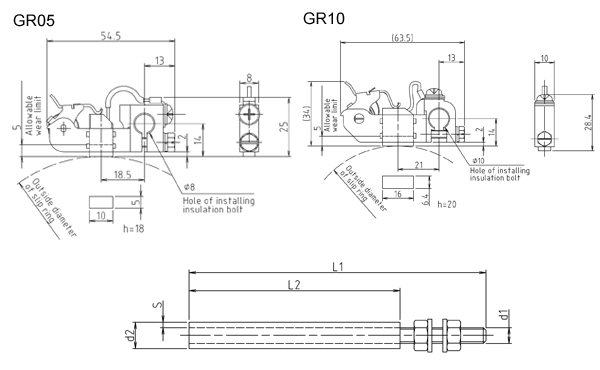

Model
Brush maximum current
[A]Brush maximum speed
[m/s]Load of brush
[N]Brush mass
[g]Gr05 5.0 30 2.0 52.5 Gr10 10.0 30 3.0 64.0 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Insulation bolt dimension d1
Insulation bolt dimension d2
Insulation bolt dimension L1
Insulation bolt dimension L2
Insulation bolt dimension S
Insulation bolt mass
[g]Gr05 M6 8 80 60 1 26 Gr10 M6 10 140 100 2 45 -
1.Contact us when circumferential speed will be over than maximum speed.
