Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.
-
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Application
Brush holder
Brush maximum current
[A]Brush maximum speed
[m/s]Load of brush
[N]Brush mass
[g]Gr31 Dry type Gr30 1.5 40 2.5 33.0 Gr32 Wet type Gr30 1.5 6 10.0 33.5 Gr61 Dry type Gr60 3.0 40 3.5 61.5 Gr62 Wet type Gr60 3.0 12 20.0 64.0 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll

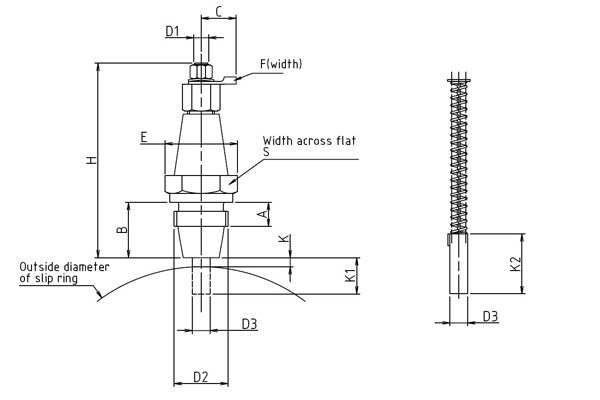

Model
dimension A
[mm]dimension B
[mm]dimension C
[mm]dimension D1
dimension D2
dimension D3
dimension E
dimension F
dimension H
dimension K
dimension K1
dimension K2
dimension S
Gr31 7 15 11.7 M4 M14 P=1.5 4 19.6 2.4 54 3 10 16 17 Gr32 7 15 11.7 M4 M14 P=1.5 4 19.6 2.4 54 3 10 16 17 Gr61 8 19 11.7 M5 M18 P=1.5 6 24.2 2.4 65 3 16 20 21 Gr62 8 19 11.7 M5 M18 P=1.5 6 24.2 2.4 65 3 16 20 21 -
1.contact us when circumferential speed will be over than maximum speed.
2.when current will be over 3A or speed will be over 6m/s, it need 2 brushes with each slip rings.
3."mass" is included brush and brush holder.
