Fluid dynamic bearing (FDB) brushless 3-phase motor combines the advantages of a brushless dc motor with the cutting edge technology of our fluid dynamic bearings.
Features

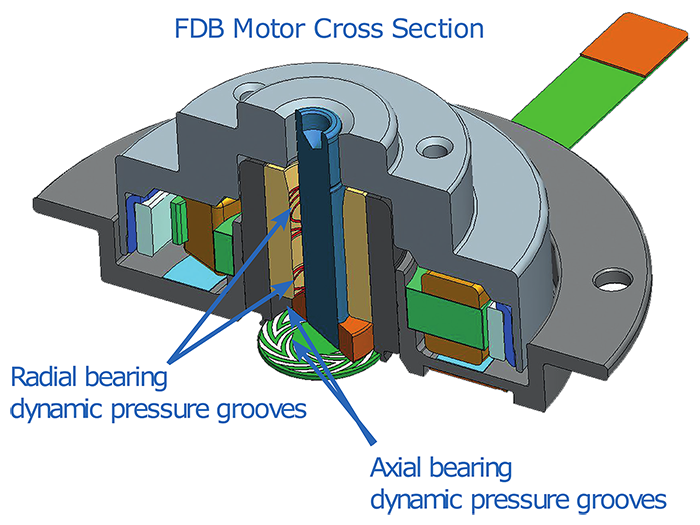

Fluid dynamic bearing technology
low noise < sound power overall
max 20 dB(A) re 1pW
low vibration
low runout (NRRO below 40 nm)
wobble error < 3''
Run out rotor
axial < 10 µm, radial < 5µm
Static imbalance < 35 mgcm
-
-
Mounting position: free
Bearing system: FDB(Fluid Dynamic Bearing)
Torque Constant Kit: 6.6mNm/A
Weight: 45 g max.
Rotor Inertia: 1.4 x 1E-6kgm2
Oper. Temp. Range: -20 to +70 degree Celsius
Non Oper. Range: -40 to +70 degree Celsius
Direction of Rotation: CCW only!
Number of Poles/Slot: 12/9
Speed range: 3000 - 12000 rpm* -
-
-
scroll
Rated Voltage
[V]Rated Speed
[rpm]Power at
rated speed
[W]Friction Torque at
rated speed
[mN・m]Current at rated Speed
(without load)
[A]5 3600 0.45 1.19 0.18

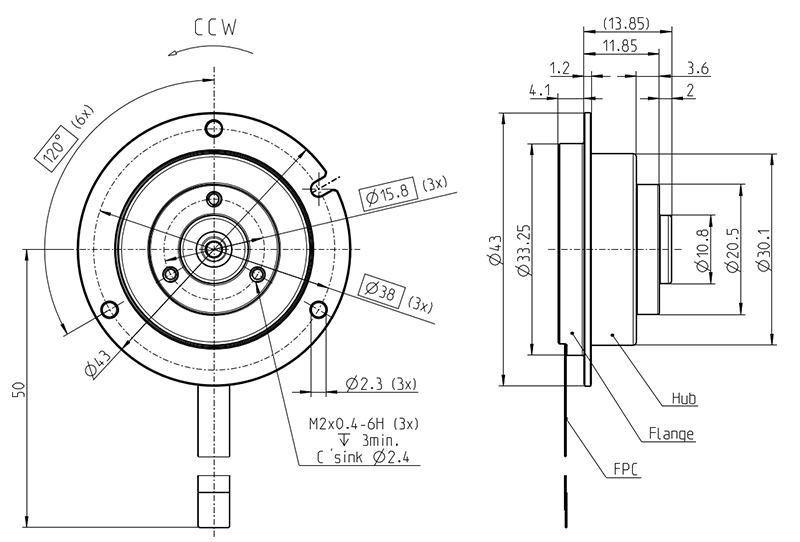

Z.Nr.
11C0-888-00008
Memo
*The specification for Rated Voltage and Nominal Speed are just example values. These parameters are depending on customer requirements and electronics. The Speed Range is also depending on the rotor mass and center of gravity.
-
Integrated Drive Electro.: No
Planetary Gearbox: No
Sensorless Operation: Yes -
