VR resolvers, angle sensors based on a variable reluctance method, have a promising future mainly for use in controlling motors in automobile-related applications. VR resolvers are expected to find a wide range of applications in the future, such as in electric powered steering, hybrid cars, electric cars, integrated starter generators, brake by wires, steering by wires, and valve controls. The signal from a VR resolver can be converted digitally using the same R/D converter as those intended for the brushless resolver.
-
-
-
Number of multiple 2X-6X Input voltage
[AC Vrms]7 Input frequency
[KHz]10 Transformation ratio 0.286 Maximum rotation speed
[r/min]12000 Temperature range
lower limit
[deg.C]-40 Temperature range
upper limit
[deg.C]125 Stator outer diameter
[mm]132 Rotor inner diameter
[mm]52 Stack thickness
[mm]4 The transformation ratio may be lower than 0.286.
Resolvers under development are included. Please inquire for details.

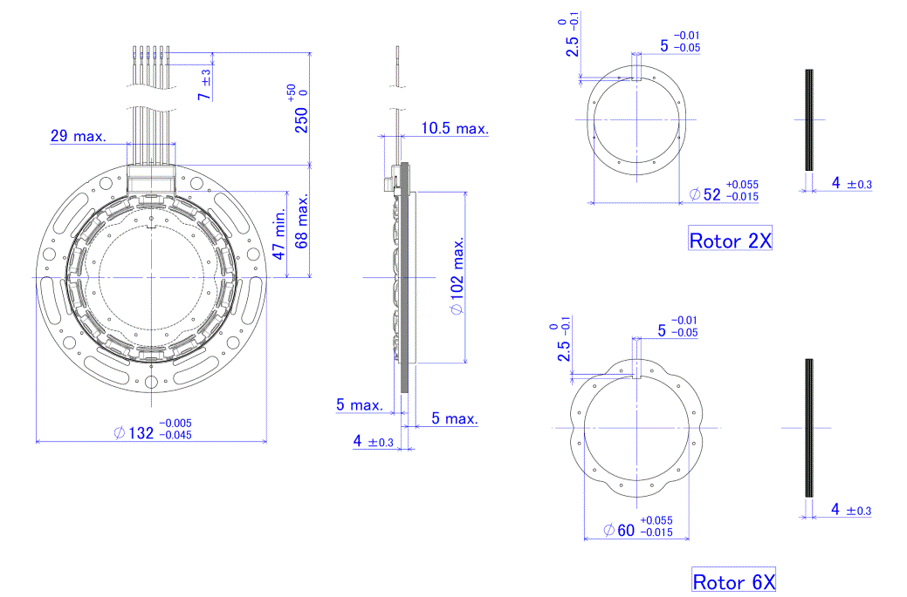

There is a difference in size at the rotor inner diameter. For more details, please find the outline dimensions.
