Optional Items

This is a list of optional components compatible with our drivers. We offer a wide range of components, including cables connecting the motor and driver, as well as maintenance connectors.

Download

Case Studies
Industry

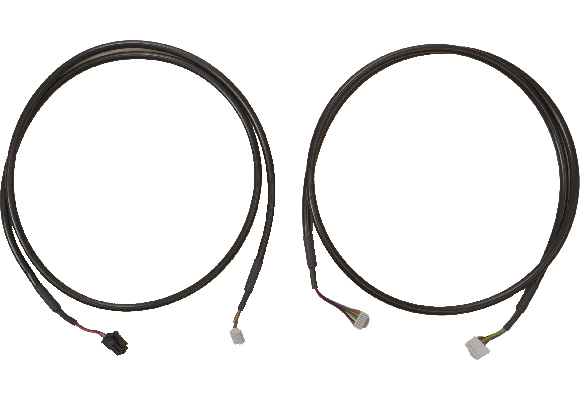

S series motor cables

Note: Cable is not included. Please purchase separately.

Product group	Model	Cable specifications	Length	Remarks
□28 (Model: M11~)	2417-1703-11F01	Movable cable (with shield)	1m	High flex life specification
	2417-1703-11F03		3m	High flex life specification
	2417-1703-11F05		5m	High flex life specification
□42 (Model: M17~)	2417-1703-17F01	Movable cable (with shield)	1m	High flex life specification
	2417-1703-17F03		3m	High flex life specification
	2417-1703-17F05		5m	High flex life specification
□56 (Model: M23~)	2417-1703-23F01	Movable cable (with shield)	1m	High flex life specification
	2417-1703-23F03		3m	High flex life specification
	2417-1703-23F05		5m	High flex life specification

S series encoder cables

Note: Cable is not included. Please purchase separately.

Product group	Model	Cable specifications	Length	Remarks
□28/42/56 common (Model: M11~, M17~, M23~ common)	2417-1704-17F01	Movable cable (with shield)	1m	High flex life specification
	2417-1704-17F03		3m	High flex life specification
	2417-1704-17F05		5m	High flex life specification
