This driver for hybrid stepping motors maximizes motor performance. It features stall-free operation through closed-loop control, high torque, high responsiveness, and low vibration, contributing to stable equipment operation.

Equipped with a slim, battery-less absolute encoder as standard. Because no homing operation is required after a power outage, it reduces recovery time following an emergency stop or issue, minimizing downtime on the production floor. High torque is maintained even at high speeds, making it ideal for driving high-inertia, high-load turntables in specimen testing systems and precise operations in food processing machinery.

It enables flexible combinations with any of the nine available motor sizes and an electric gripper to suit your application. We also offer flexible customization to meet your specifications, including modifying shaft shapes and adding gears or electromagnetic brakes.

For detailed specifications, please download our catalog.

Features

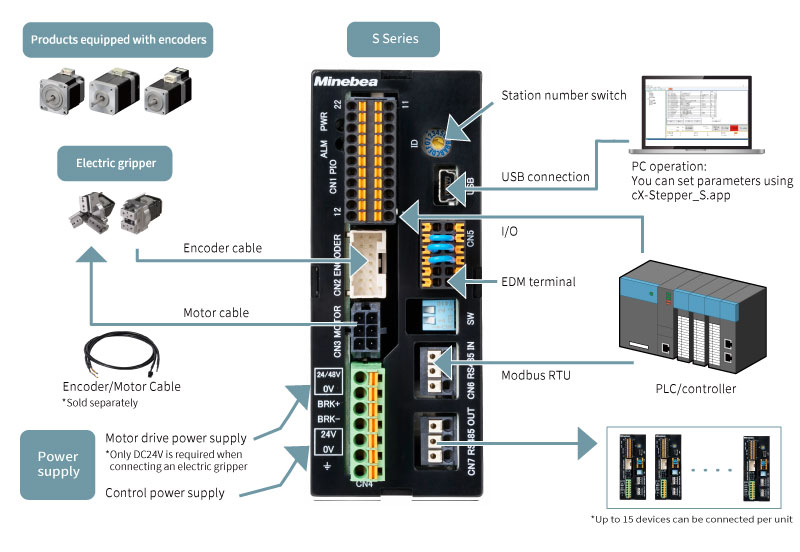

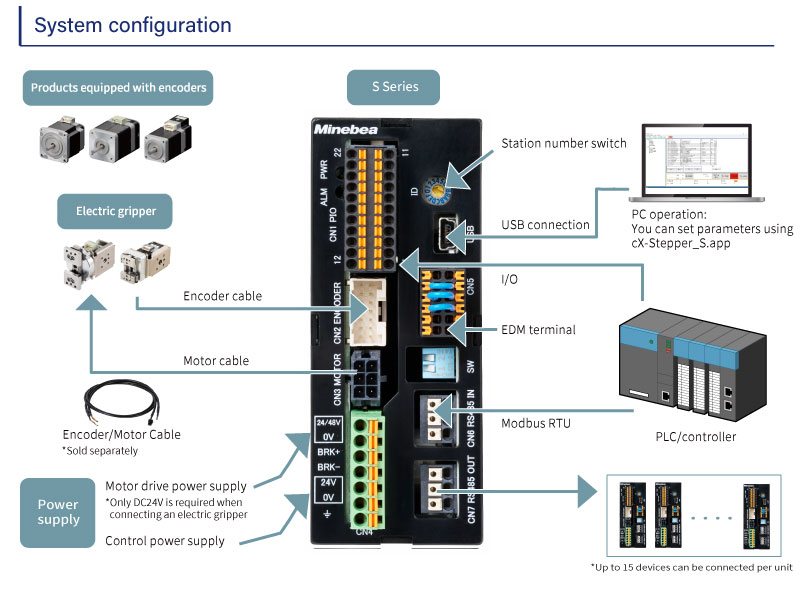

When combined with the specified encoder-equipped stepper, this driver system achieves "closed-loop control." We offer a comprehensive lineup of drivers tailored for various FA networks. Furthermore, all models support I/O and pulse train operation. This driver is compatible with the motors listed on this page, and a configuration app is available free of charge.

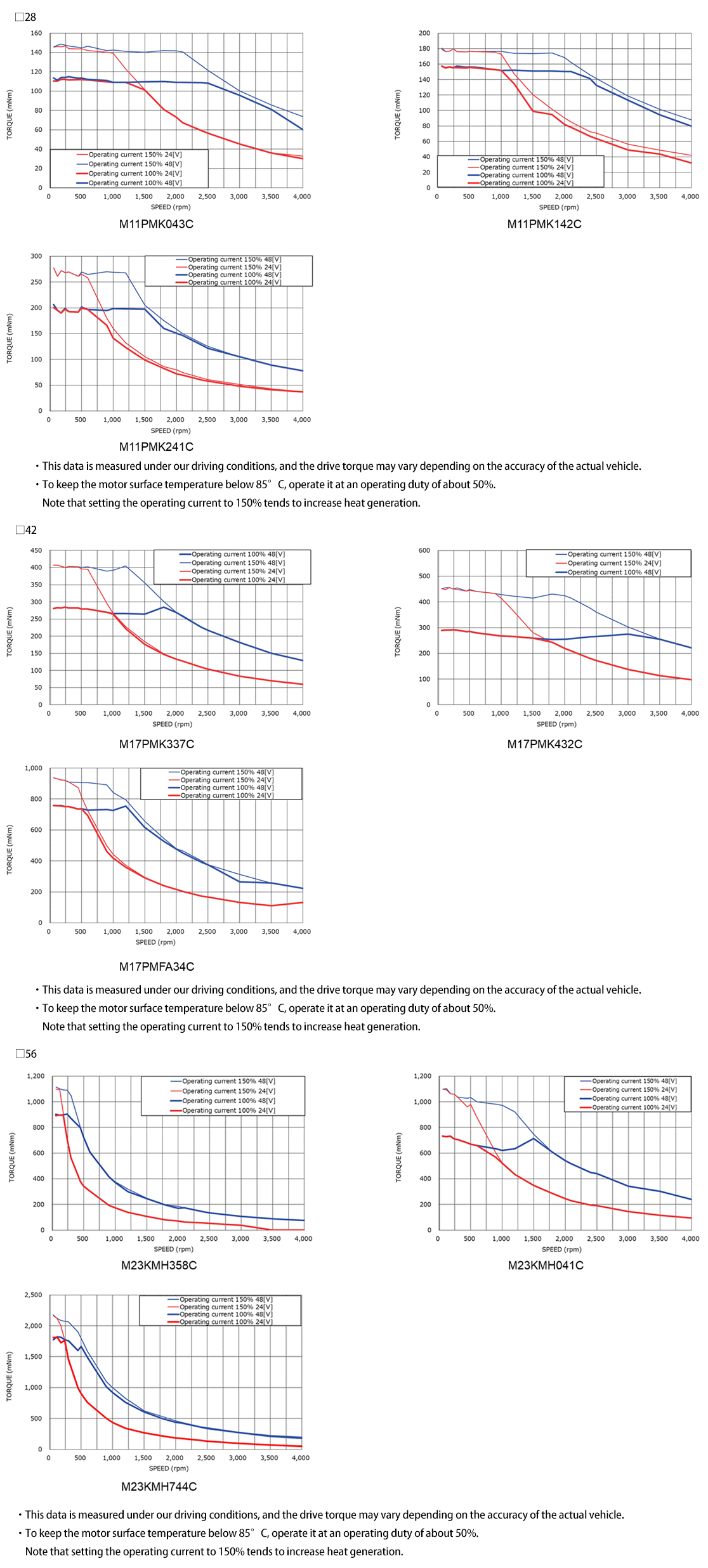

This driver supports RS485 communication and also enables I/O and pulse train operation. For compatible motors, please refer to the "Motor Specifications" and "Torque/Speed Characteristics".

Driver Specifications

External dimensions (W) [mm]	40.6
External dimensions (D) [mm]	79.5
External dimensions (H) [mm]	100
External dimensions (H) [mm]	119.5
Number of connected axes	single axis
Main circuit input power voltage	DC24/48V
Input current	Motor rated current or higher
Control circuit input power supply voltage	DC24V
Control circuit Input current [mA]	150
Adaptive Load Inertia	Less than 20 times the motor inertia
Communication	RS485
Maximum number of drivers that can be connected	15
Pulse operation	✔
I/O operation	✔
Mass [g]	190

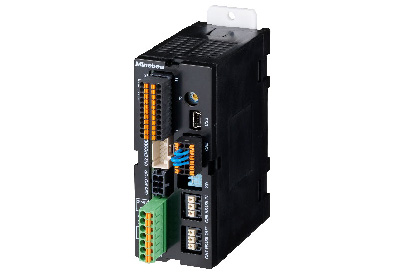

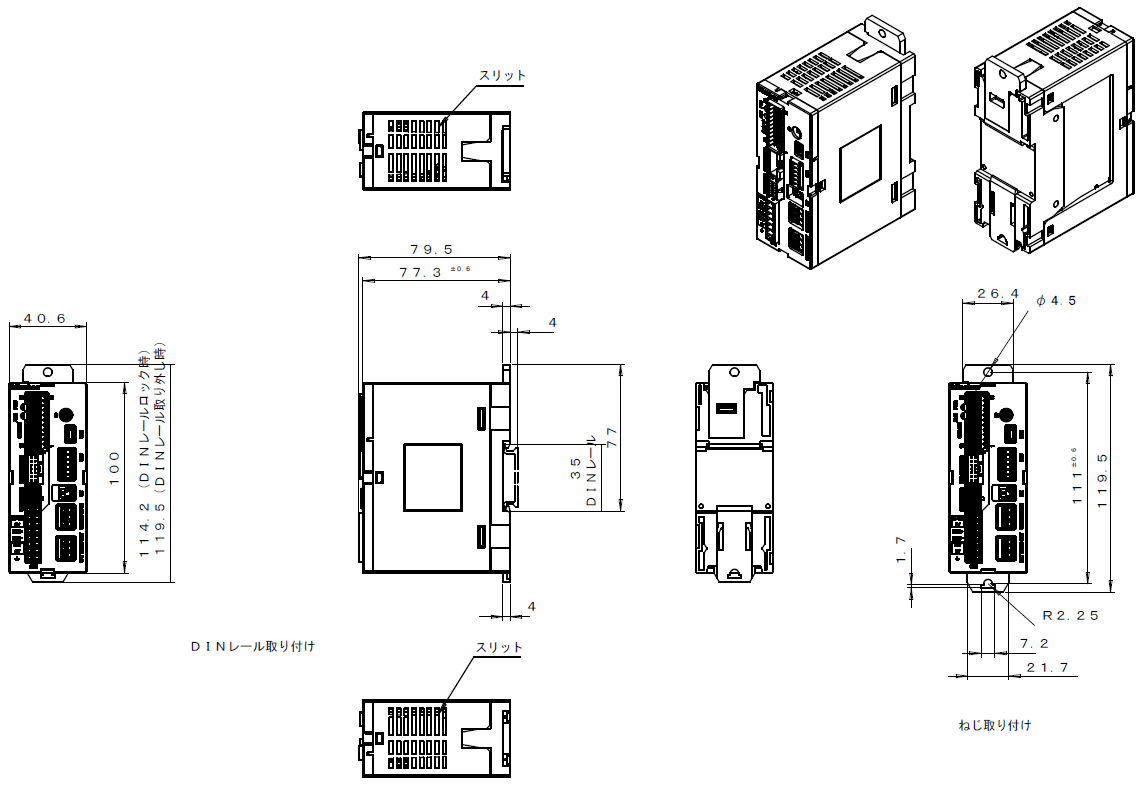

Driver Overall View

Motor Specifications

scroll

Model	Outer Diameter [mm]	Length [mm]	Rated Current [A]	Resistance [Ω]	Holding Torque [mN・m]	Rotor Inertia [g・cm2]	Detent Torque [mN・m]	Encoder Resolution [CPR]	Mass [g]	Maximum turn count
M11PMK043CSMA00	28	49	1.5	1.3	100	8	4.4	16000	170	200
M11PMK142CSMA00	28	57	1.5	1.5	145	13	5.4	16000	200	200
M11PMK241CSMA00	28	68	1.5	1.7	200	16	8	16000	270	200
M17PMK337CSMA00	42	52	2	0.9	290	50	11	16000	320	1000
M17PMK432CSMA00	42	62	2	1.2	510	75	16.7	16000	420	1000
M17PMFA34CSMA00	42	74	2.6	1	690	162	30	16000	580	1000
M23KMK358CSMA00	56.4	64	1.7	1.9	800	180	29	16000	660	1000
M23KMH041CSMA00	56.4	69	3	0.9	1300	320	54	16000	750	1000
M23KMH744CSMA00	56.4	91	3	0.7	1800	550	93	16000	1130	1000

Motor Overall View

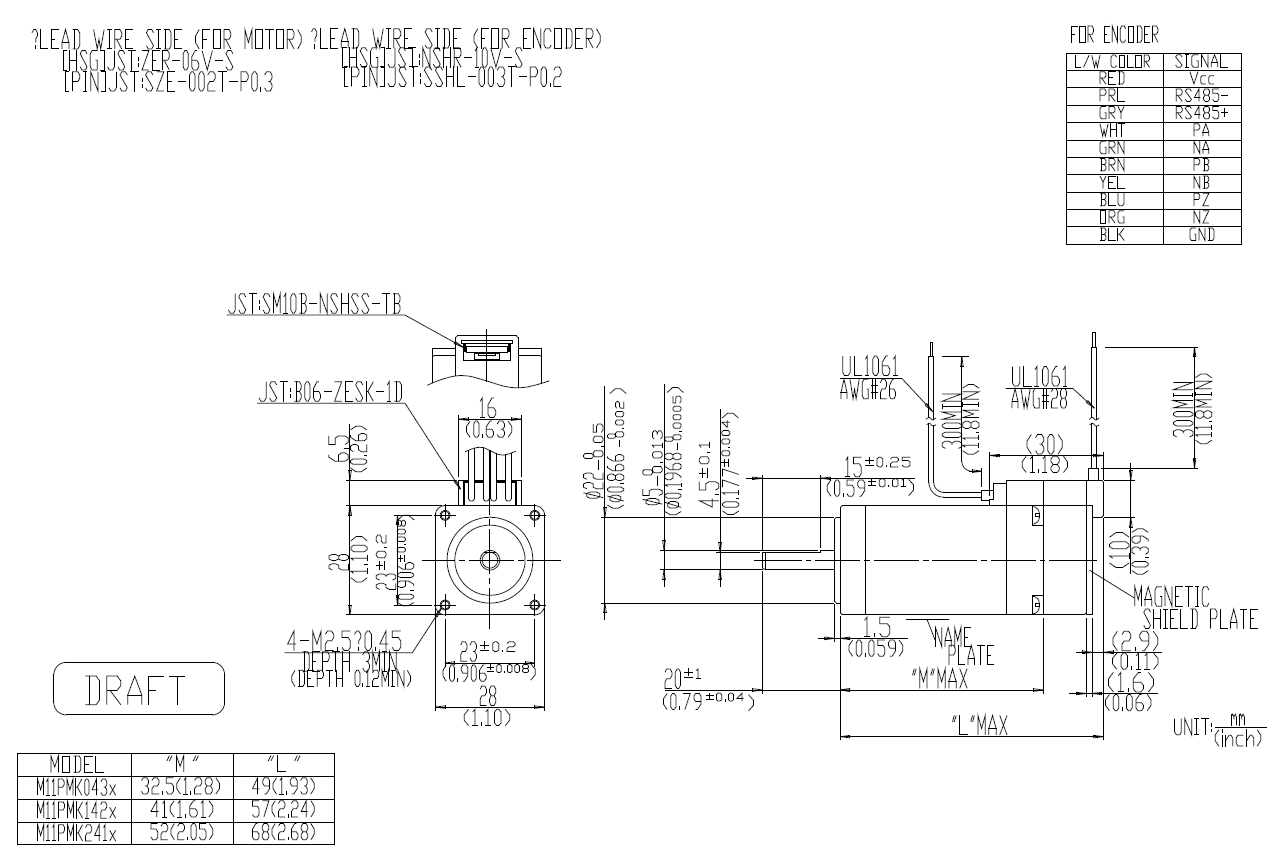

□28

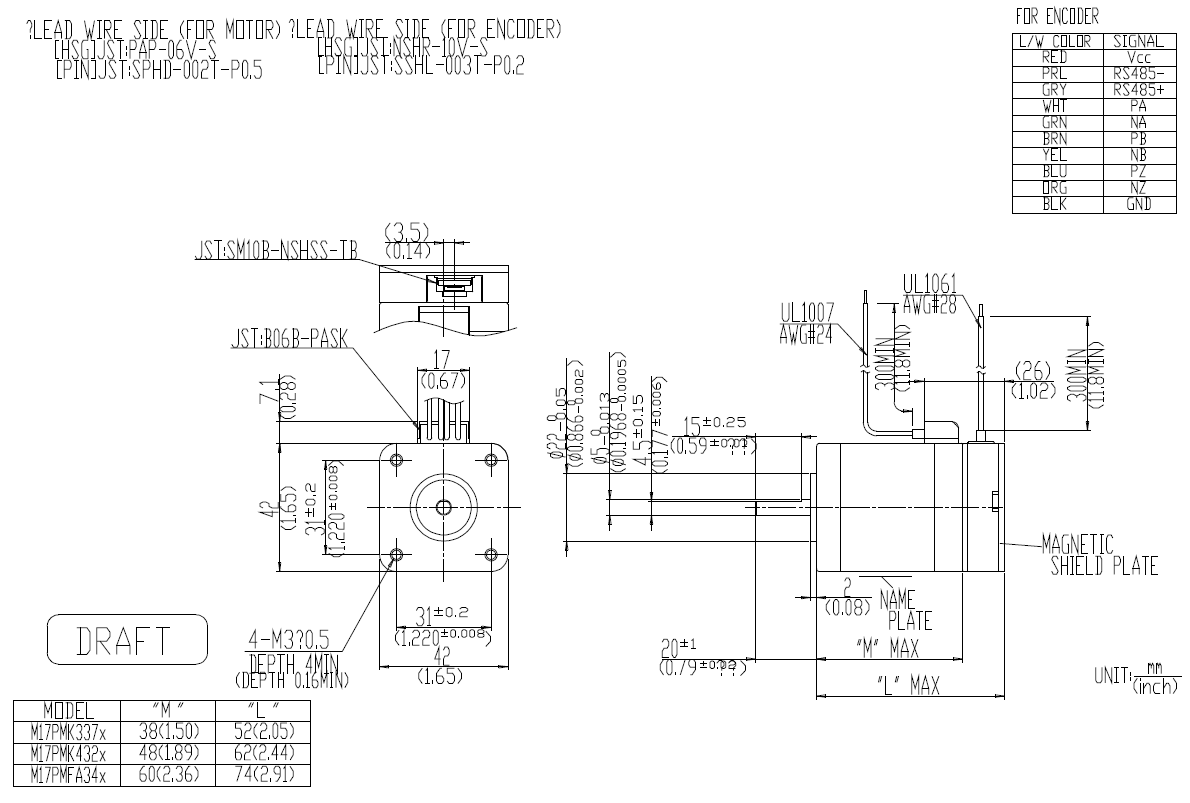

□42

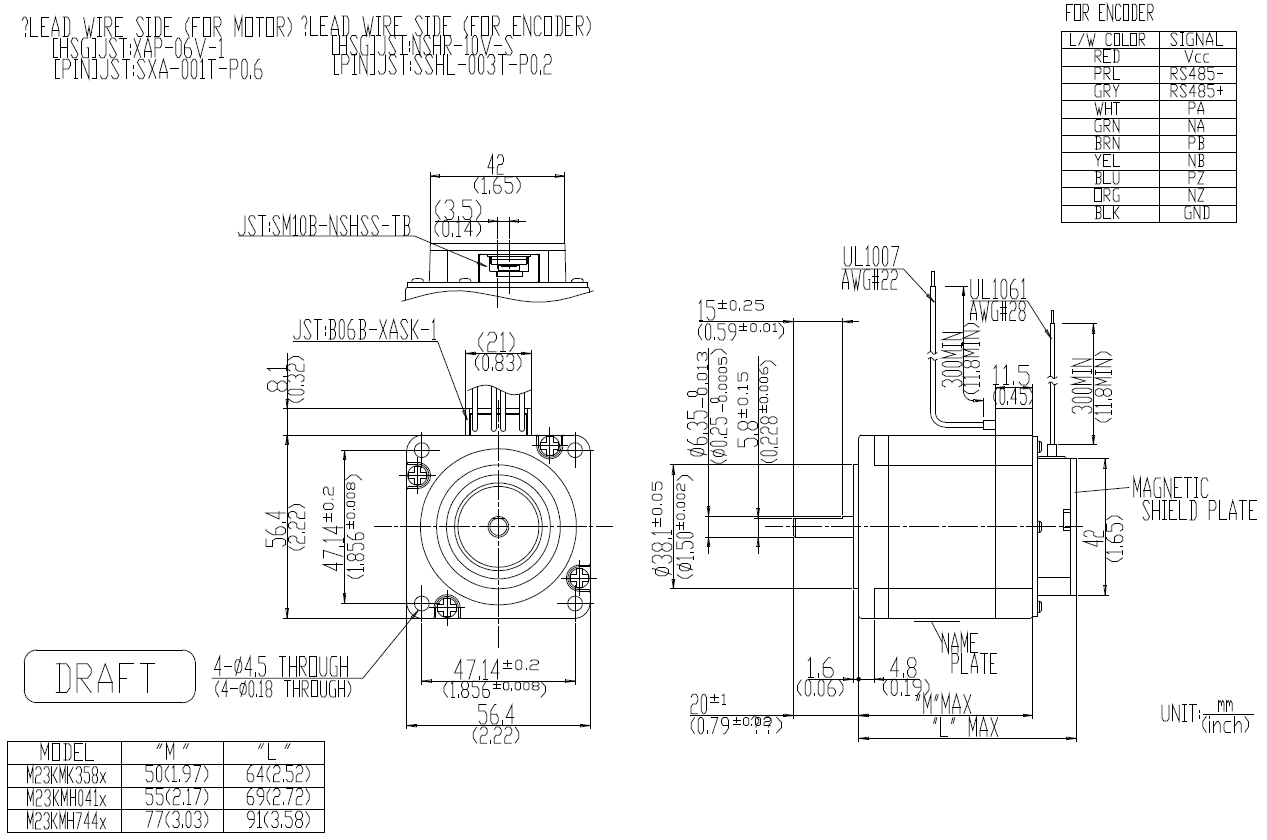

□56
