Characteristic
Reference Characteristics
| Outer Diameter [mm] |
Magnet Material | Insulation Resistance (M) [Ω/min] |
Dielectric Strength (AC) [V/min] |
Carrent/Phase(Peak) [mA] |
Drive Method | Resistance/Phase [Ω] |
Insulation resistance | Dielectric Strength | Class of Insulation | Temparature Rise MAX [deg.C] |
Ambient Temperature Range lower limit [deg.C] |
Ambient Temperature Range upper limit [deg.C] |
Radial Play [mm] |
Radial Play Note | Axial Play [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.0 | Nd-Fe-B bonded magnet (MS70) | 100 | 500 | 300 | 2-2 phase | 10.0 | 100M[Ω]Min. at DC500[V] | AC500[V] 1[min] | Class E（Except lead wire） | 65 | -10 | 50 | 0.03 | *6[mm] from flange | 0.25 |

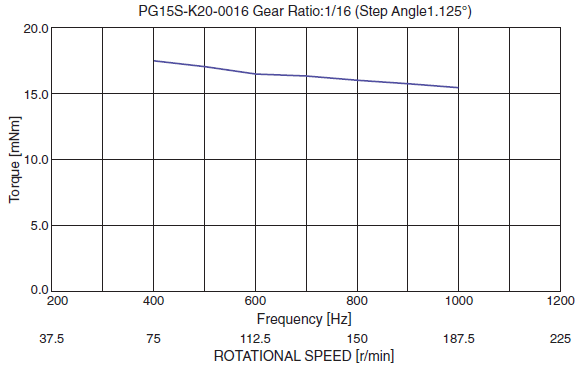

Torque Characteristic

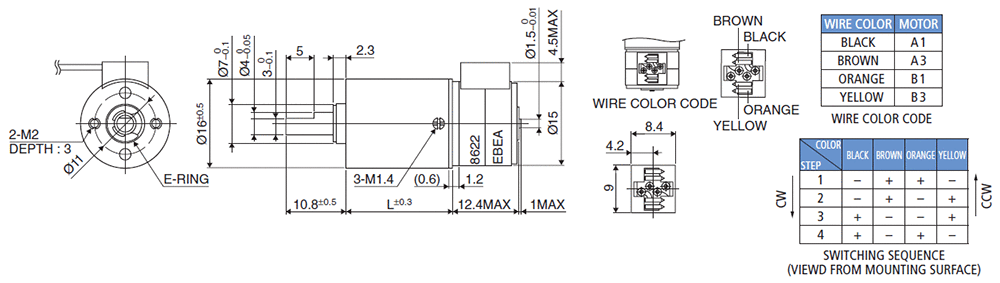

Overall View
Specifications
| Model | Drive Circuit | Drive Voltage [V] |
Current/Phase [mA] |
Drive IC | Gear Ratio [1:X] |
Step Angle [°] |
Rated Torque [mN・m] |
Rated Torque [gf･cm] |
Maximum Instantaneous Torque [mN・m] |
Maximum Instantaneous Torque [gf･cm] |
Gearhead length L1 [mm] |
|---|
Applications
Optical Equipment：Projector ／ Security Camera
Medical Equipment：Blood Analyzer ／ Tube Pump
Industrial Equipment：Flow Control Valves ／ Antenna
Adjustment Device
Power Tools：Drills ／ Drivers
