PM35S-N48

These motors rotate at fixed angles by digitally controlled electronic pulses and are used in the paper-feeding devices of printers, copy machines, facsimiles and similar equipment. PM stepping motor uses a permanent magnet (PM) as a rotor.

scroll

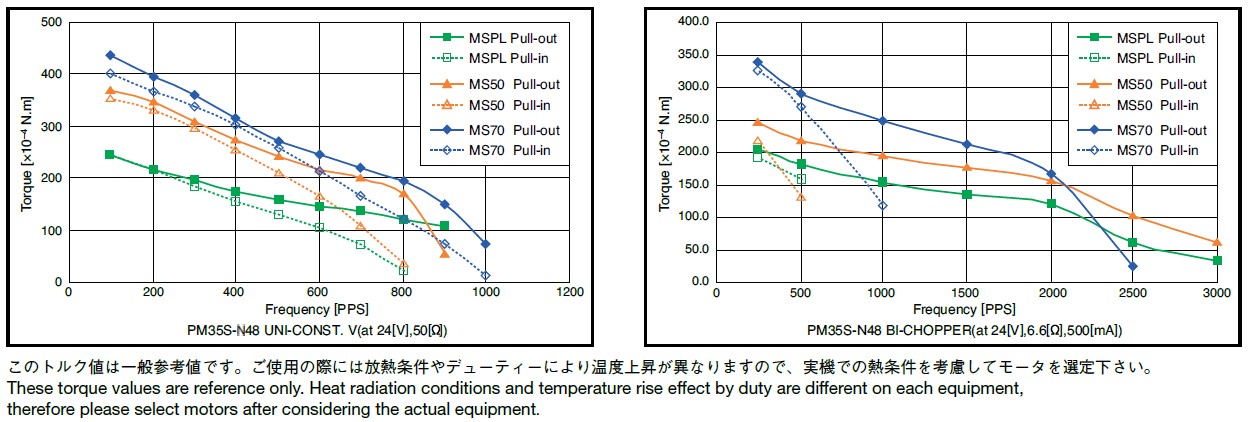

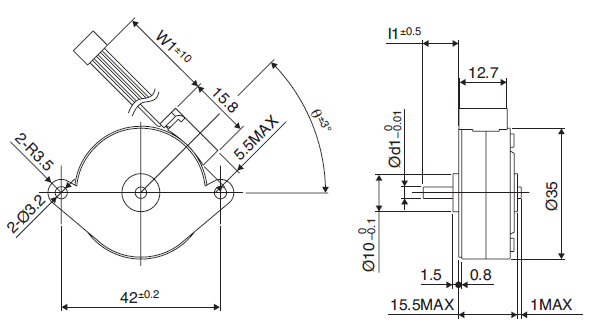

Outer Diameter [mm]	Length [mm]	Step No.	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Step Angle [deg]	Drive Method	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
35.0	15.50	48	Ferrite plastic magnet(MSPL) Polar anisotropy ferrite sintered magnet(MS50) Nd-Fe-B bonded magnet(MS70)	100	500	7.50	2-2 phase	CLASS E	-10	50	-30	80	20	90

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Drive Circuit	Drive Voltage [V]	Current/Phase [mA]	Coil Resistance/Phase [Ω]	Drive IC
UNIPOLAR CONST. VOLT.	24		50.0	2SC3346
BIPOLAR CHOPPER	24	500.0	6.6	BD63877EFV

OA Equipment:Printers / Scanners
Industrial equipment:Flow control valves
Automotive:Maters / Optic axis control device
Home automation appliances:Sewing machines
