PM42S-N96

These motors rotate at fixed angles by digitally controlled electronic pulses and are used in the paper-feeding devices of printers, copy machines, facsimiles and similar equipment. PM stepping motor uses a permanent magnet (PM) as a rotor.

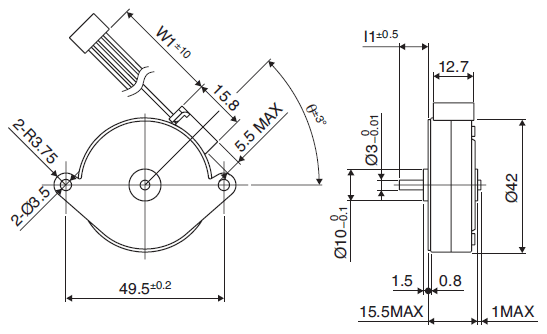

scroll

Outer Diameter [mm]	Length [mm]	Step No.	Magnet Material	Insulation Resistance (M) [Ω/min]	Dielectric Strength (AC) [V/min]	Step Angle [deg]	Drive Method	Class of Insulation	Operating Temp. lower limit [deg.C]	Operating Temp. upper limit [deg.C]	Storage Temp. lower limit [deg.C]	Storage Temp. upper limit [deg.C]	Operating Hum. RH lower limit [%]	Operating Hum. RH upper limit [%]
42.0	15.50	96	Nd-Fe-B bonded magnet(MS70)	100	500	3.75	2-2 phase	CLASS E	-10	50	-30	80	20	90

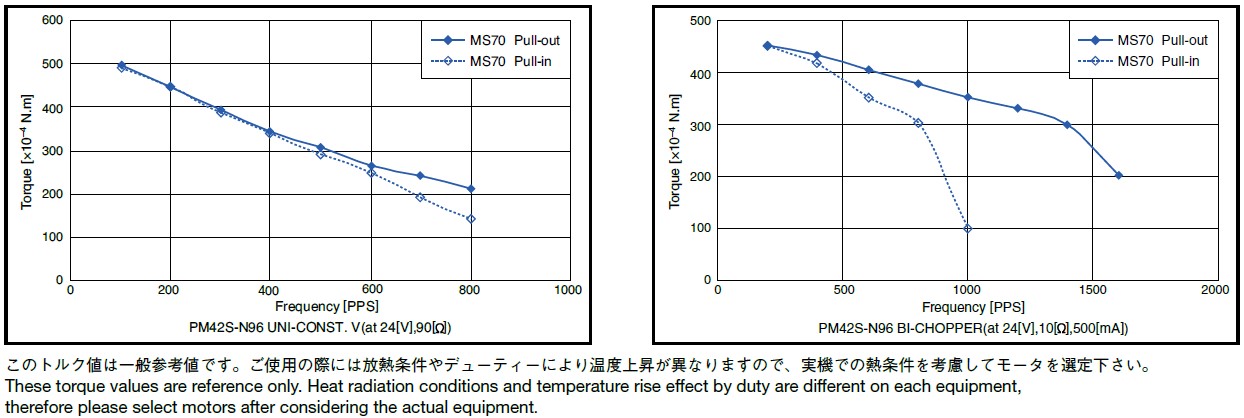

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Drive Circuit	Drive Voltage [V]	Current/Phase [mA]	Coil Resistance/Phase [Ω]	Drive IC
UNIPOLAR CONST. VOLT.	24		90.0	2SC3346
BIPOLAR CHOPPER	24	500.0	10.0	BD63877EFV

OA Equipment:Printers / Scanners
Industrial equipment:Flow control valves
Toys:Slot machines
Home automation appliances:Sewing machines
Catalog
- PDF product catalog
CAD
- 3D/2D CAD
